LHD - Module Locked

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

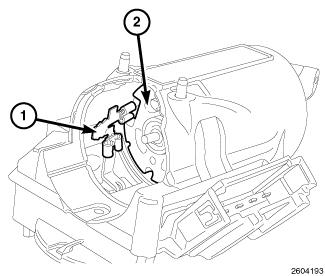

Fig 1: Identifying Terminal Pin Jumpers & Motor
GC0137526Courtesy of CHRYSLER LLC
NOTE: If a NEW column lock module has been installed, a new Wireless Ignition Node (WIN) must also be installed, then a diagnostic scan tool MUST be used to initialize the new module before the vehicle can be operated. See Electrical/Vehicle Theft Security - Standard Procedure .
  1. Remove the steering column. Refer to Steering/Column - Removal .
  2. Break the black cover off of the module with a screw driver.
  3. Remove the two terminal pins jumpers (1) to the motor (2).

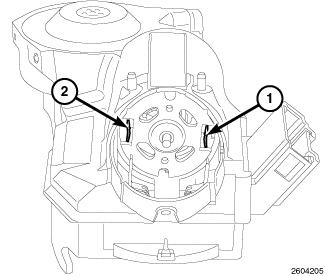

    Fig 2: Connecting 12 Volt Power Supply To Motor Terminals
    GC0137527Courtesy of CHRYSLER LLC
  4. Connect a 12 volt power supply to the motor terminals, connect the negative to the pin next to the green connector (1) and the positive to the pin farthest away from the green connector (2).
  5. Allow the motor to unlock the steering column bolt, you will hear the motor load up and try to twist when the bolt has completely retracted.

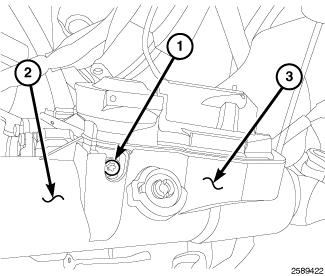

    Fig 3: Identifying Steering Column & Lock Retainer
    GC0137528Courtesy of CHRYSLER LLC
  6. Remove the steering column lock retainer (1).
  7. Remove and disconnect the steering column lock module from the steering column (2).
