MODULE, Shaft Lock, Export: Installation: RHD
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- If not present, insert the ignition key into the ignition lock cylinder. This will move the shaft lock module locking bolt to the unlocked position. Leave the key in the lock cylinder while the shaft lock module service is being completed.
- Connect the wiring harness connector to the module.

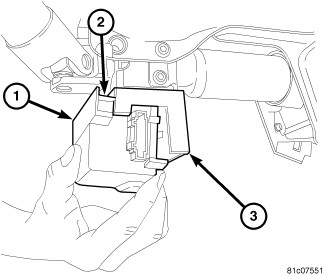

- Align the engagement and slide tabs (2) on the shaft lock module housing (1) with the slots and channels in the mounting bracket (3) on the steering column.
- Carefully slide the module toward the top (steering wheel end) of the column until it is in mounted position and the spring clips on the module have engaged the bracket, locking it in place.
- Install the steering column cover reinforcement (1) using the four mounting screws (2).
- Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - InstallationNOTE: If a NEW column lock module has been installed, a new Wireless Ignition Node (WIN) must also be installed, then a diagnostic scan tool MUST be used to initialize the new module before the vehicle can be operated. See Electrical/Vehicle Theft Security - Standard Procedure .
