MODULE, Shaft Lock, Export: Installation: LHD

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Steering Column & Lock Retainer
GC0137528Courtesy of CHRYSLER LLC
  1. Install and connect the steering column lock module to the steering column (2).
  2. Install the locking retainer (1).

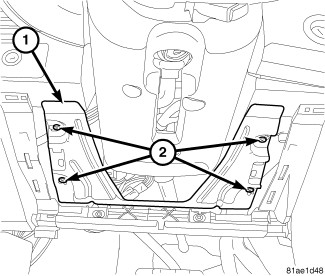

    Fig 2: Identifying Steering Column Cover Reinforcement
    GC0082691Courtesy of CHRYSLER LLC
  3. Install the steering column cover reinforcement (1) using the four mounting screws (2).
  4. Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
    NOTE: If a NEW column lock module has been installed, a new Wireless Ignition Node (WIN) must also be installed, then a diagnostic scan tool MUST be used to initialize the new module before the vehicle can be operated. See Electrical/Vehicle Theft Security - Standard Procedure .
