UNDERHOOD Lamp Unit - Police: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

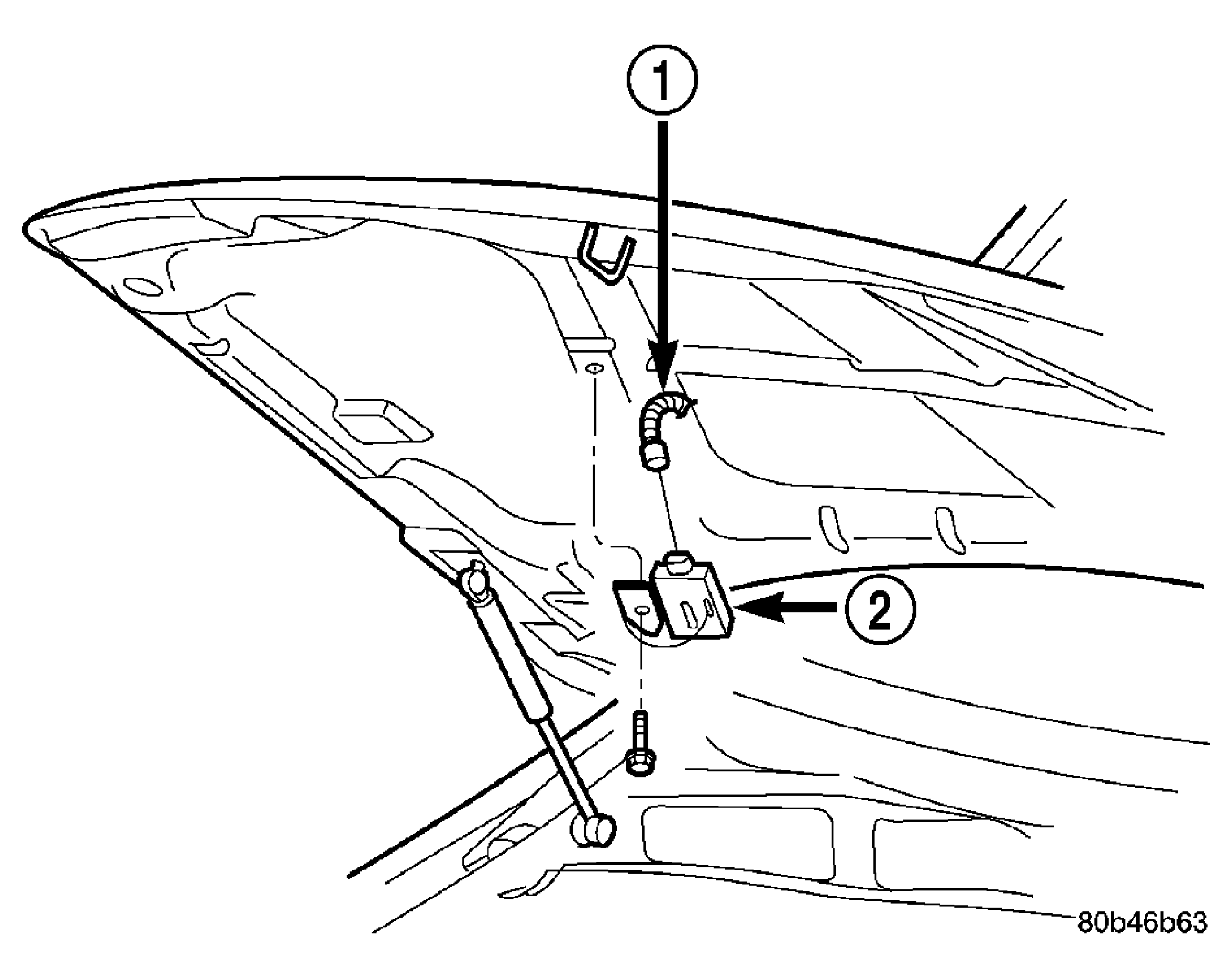

Fig 1: UNDERHOOD LAMP UNIT LOCATION - TYPICAL - POLICE
GC0040749Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the underhood lamp unit (2) on the hood inner panel.
  2. Install the push-pin fastener attaching the lamp unit base (2) to the inner hood panel.
  3. Connect the wire harness connector (1).
  4. Connect the battery negative remote cable or reinsert fuse in the PDC.
  5. Close hood.
