UNDERHOOD Lamp - Police: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

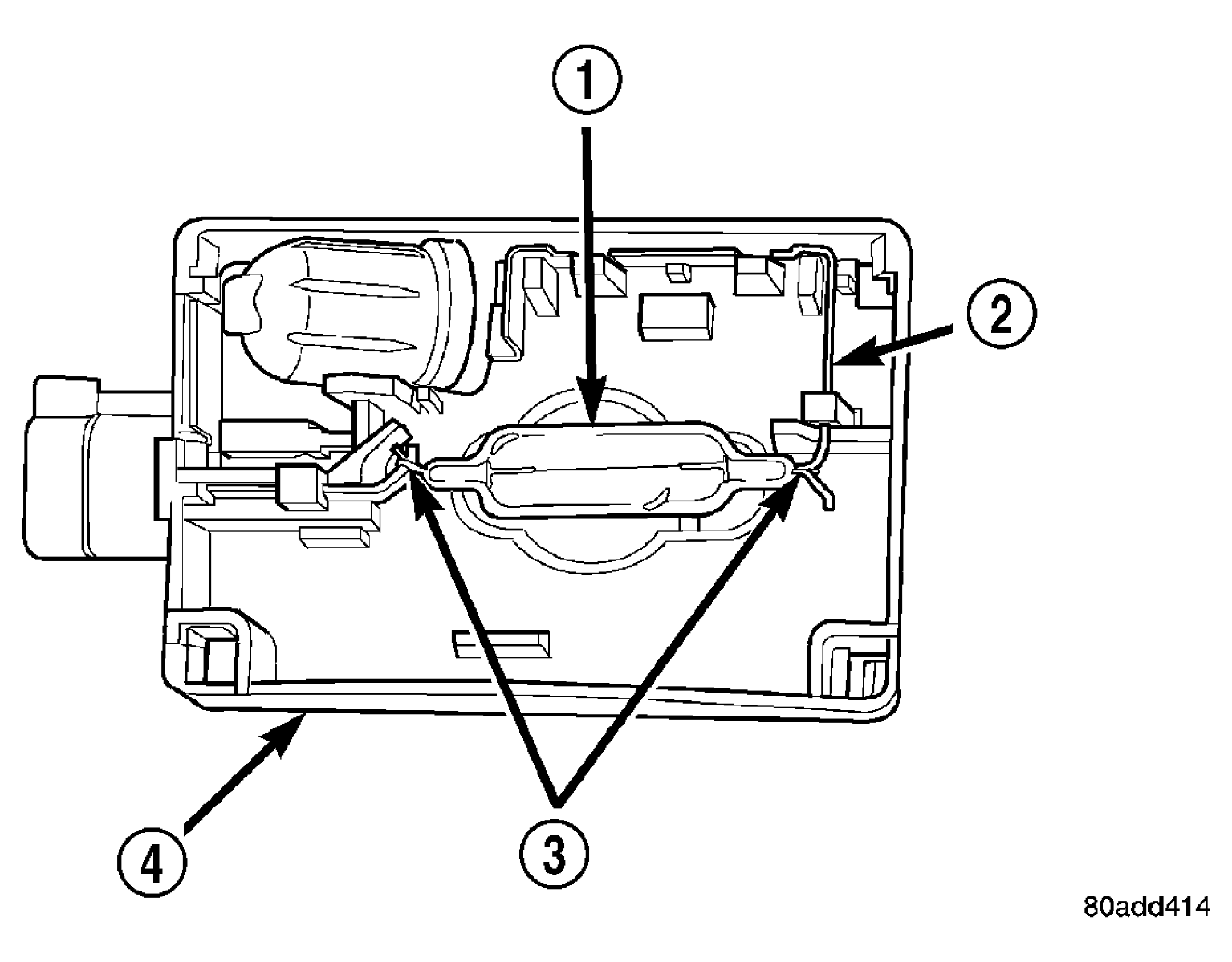

Fig 1: UNDERHOOD LAMP

Courtesy of DAIMLERCHRYSLER CORP.

Engage the replacement bulb wire loop (3) to terminal closest to lamp base (4) wire connector.
Depress the opposite terminal inward and engage the remaining bulb wire loop (3).

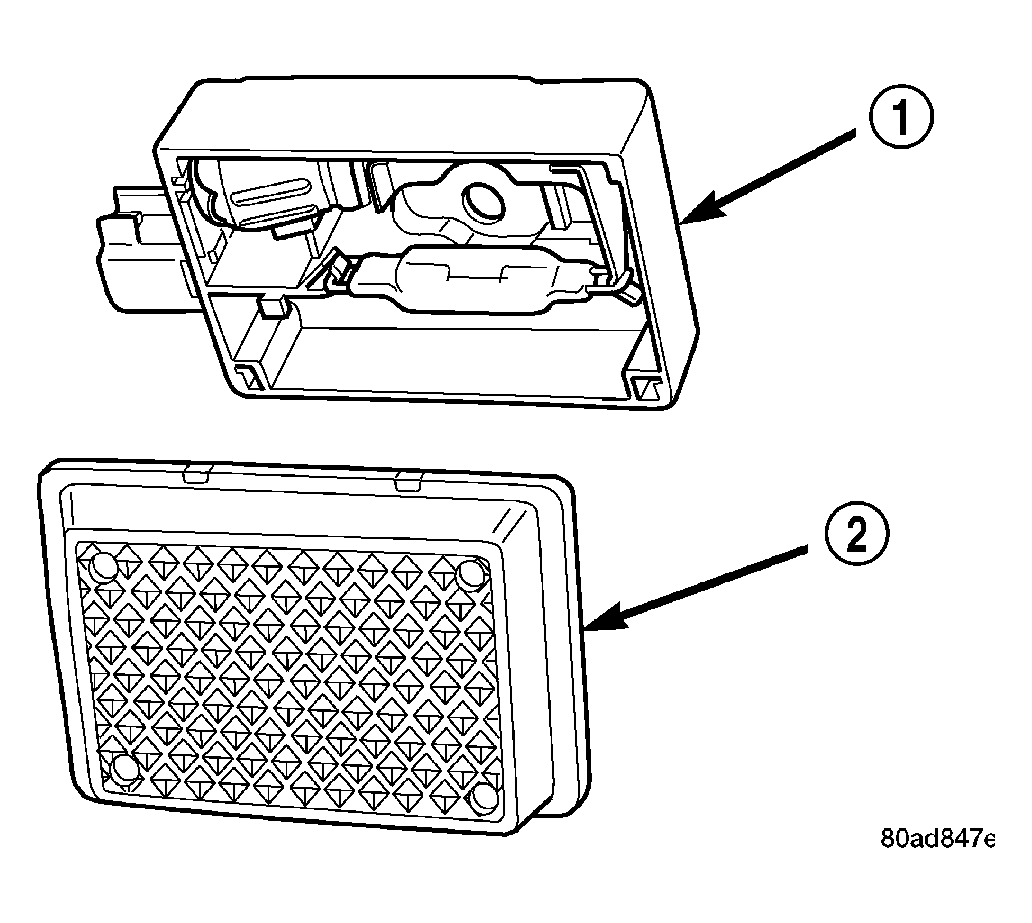

Fig 2: UNDERHOOD LAMP LENS
Courtesy of DAIMLERCHRYSLER CORP.
Position the lamp lens (2) on the lamp base (1) and firmly snap into place.
Connect the battery negative remote cable or insert fuse in the PDC.
