Tail Lamp Unit: Removal: Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fasteners
GC0016148Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the two push fasteners (1) in the liftgate opening.
    Fig 2: Fasteners
    GC0016152Courtesy of DAIMLERCHRYSLER CORP.
  3. From inside the cargo area, using a trim stick (special tool #C-4755) or equivalent, gently pry the access panel off the rear of the quarter trim panel.
  4. Remove the one plastic wing nut.
    Fig 3: Tail Lamp Unit
    GC0016146Courtesy of DAIMLERCHRYSLER CORP.
  5. Pulling rearward, release the mounting tabs of the tail lamp unit (1).

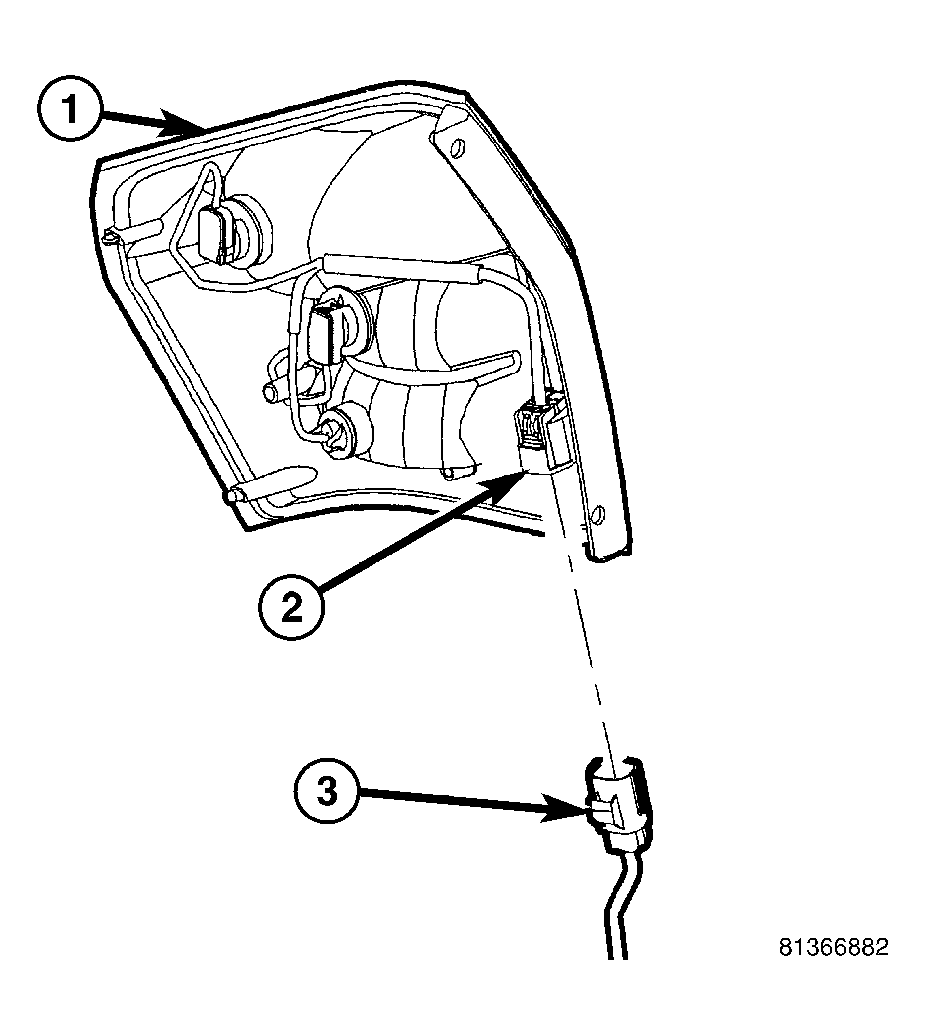

    Fig 4: Electrical Connector
    GC0016151Courtesy of DAIMLERCHRYSLER CORP.
  6. Disconnect the electrical connector (3) from tail lamp unit (1).

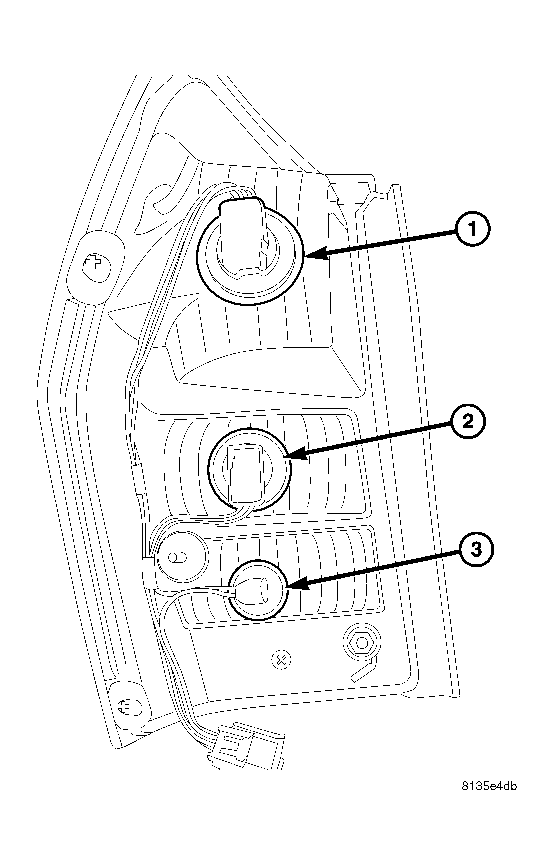

    7. Fig 5: Lamps
    GC0016145Courtesy of DAIMLERCHRYSLER CORP.
  7. Twist counterclockwise to remove the Stop (1), Turn Signal (2), or Back-Up lamps.
