Tail Lamp Unit: Removal: Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

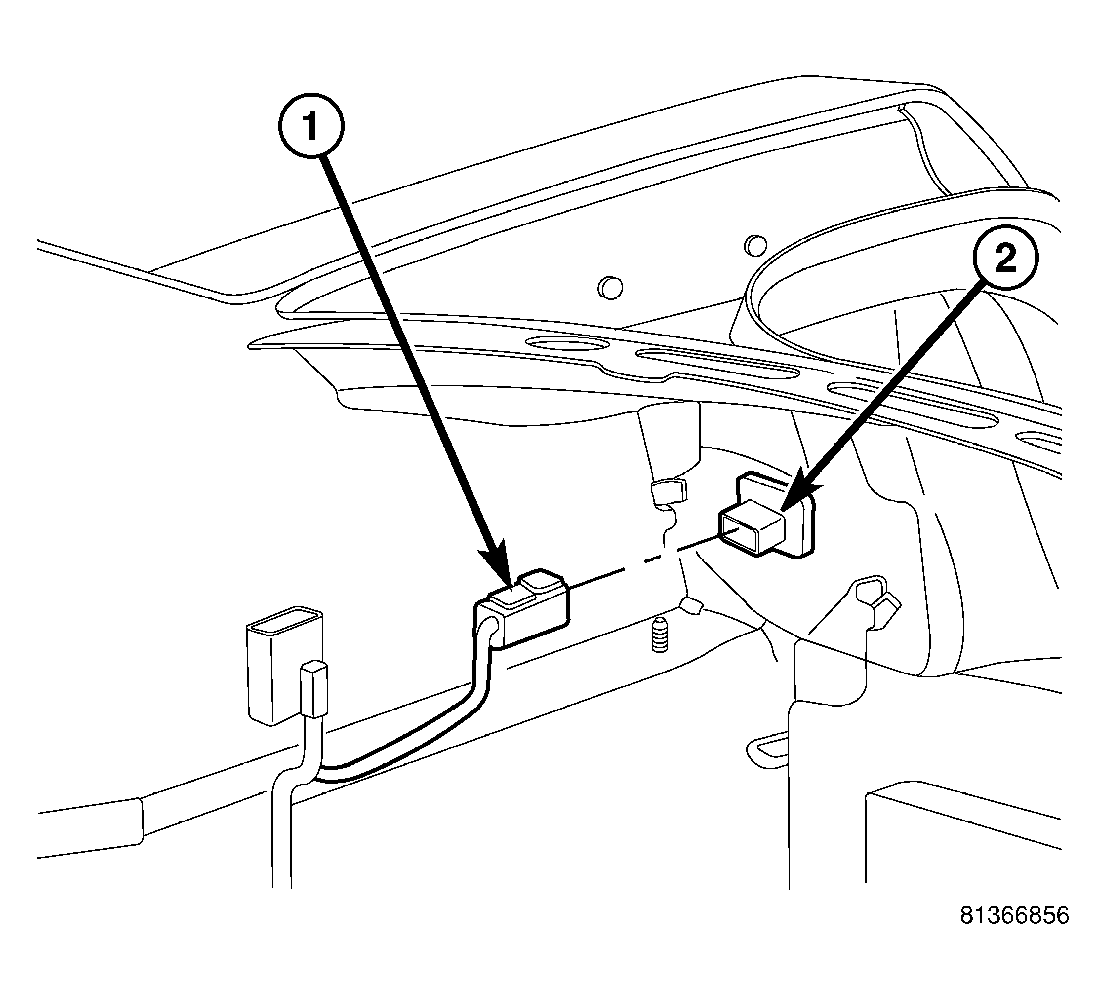

Fig 1: Electrical Connector
GC0016149Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. From inside the trunk, peel back the trunk trim and disconnect the electrical connector.

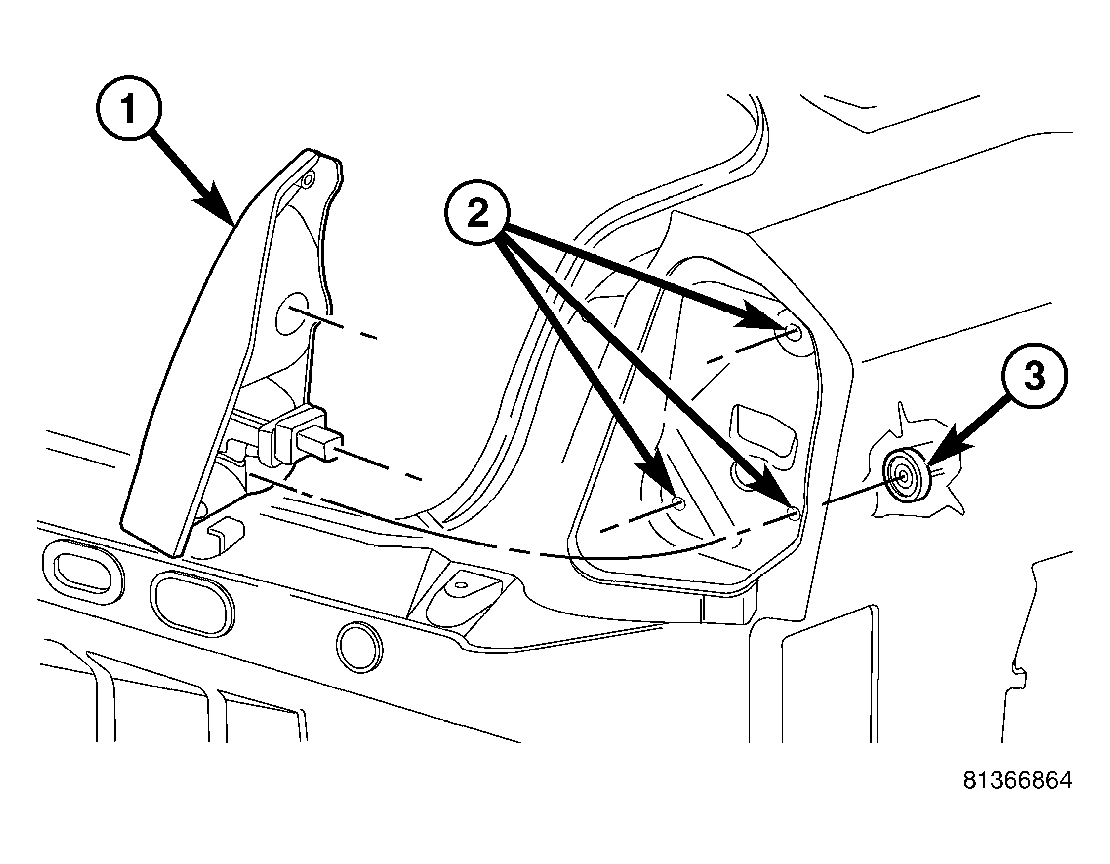

    Fig 2: Removing/Installing Tail Lamp Unit
    GC0016150Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the three plastic wing nuts (3).
  4. Pull the tail lamp unit (1) straight out of the rear of the quarter trim panel.
