Tail Lamp Unit: Installation: Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

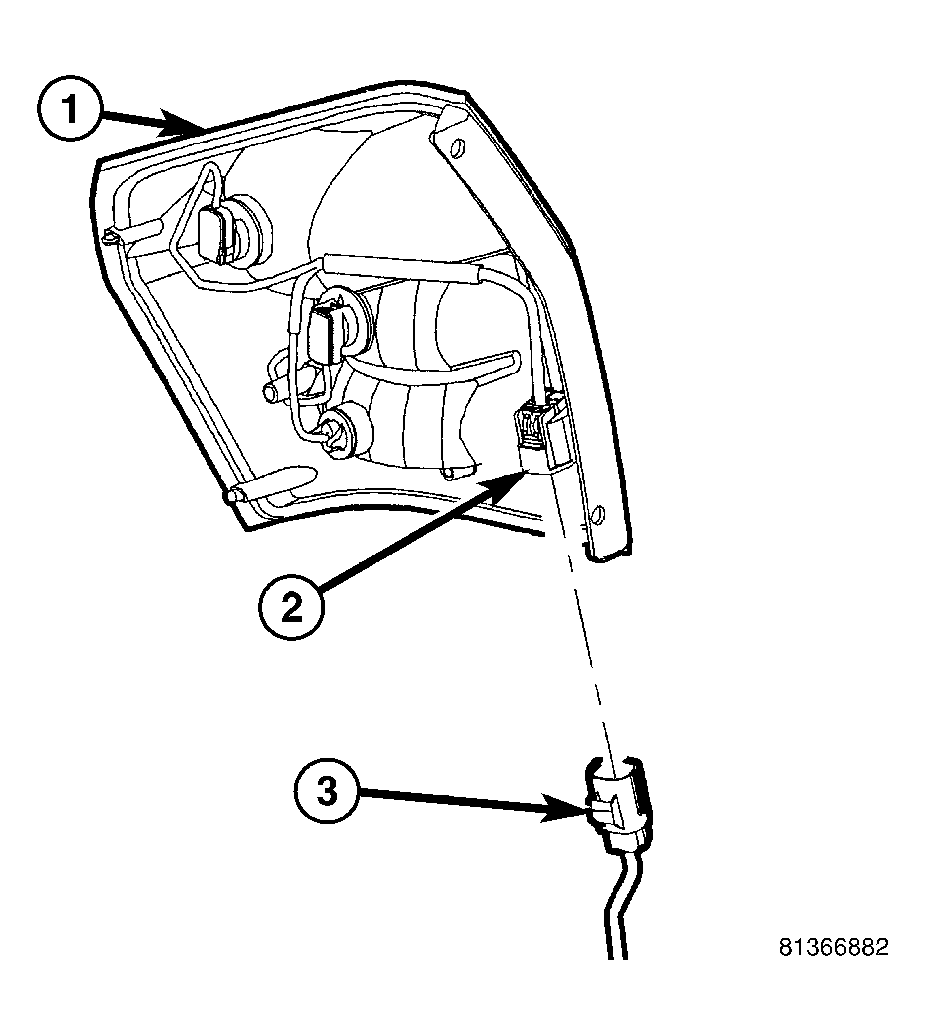

Fig 1: Electrical Connector
GC0016160Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the electrical connector (3) to the tail lamp unit (2).

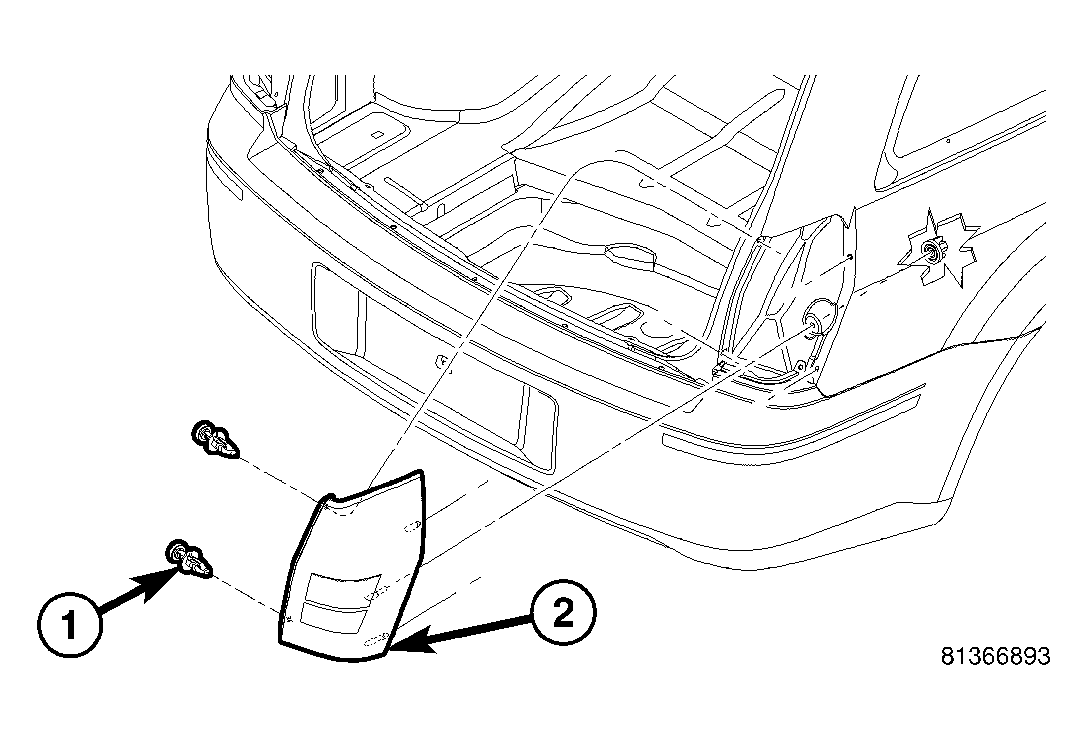

    Fig 2: Fasteners
    GC0016161Courtesy of DAIMLERCHRYSLER CORP.
  2. Position the tail lamp unit (2) in quarter panel opening.
  3. Give a firm push forward to seat the indexing pins.
  4. Install and tighten the one plastic wing nut.
    Fig 3: Fasteners
    GC0016157Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the two push pin fasteners (1) in the liftgate opening.
  6. Connect the battery negative cable.
