Tail Lamp Unit: Installation: Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

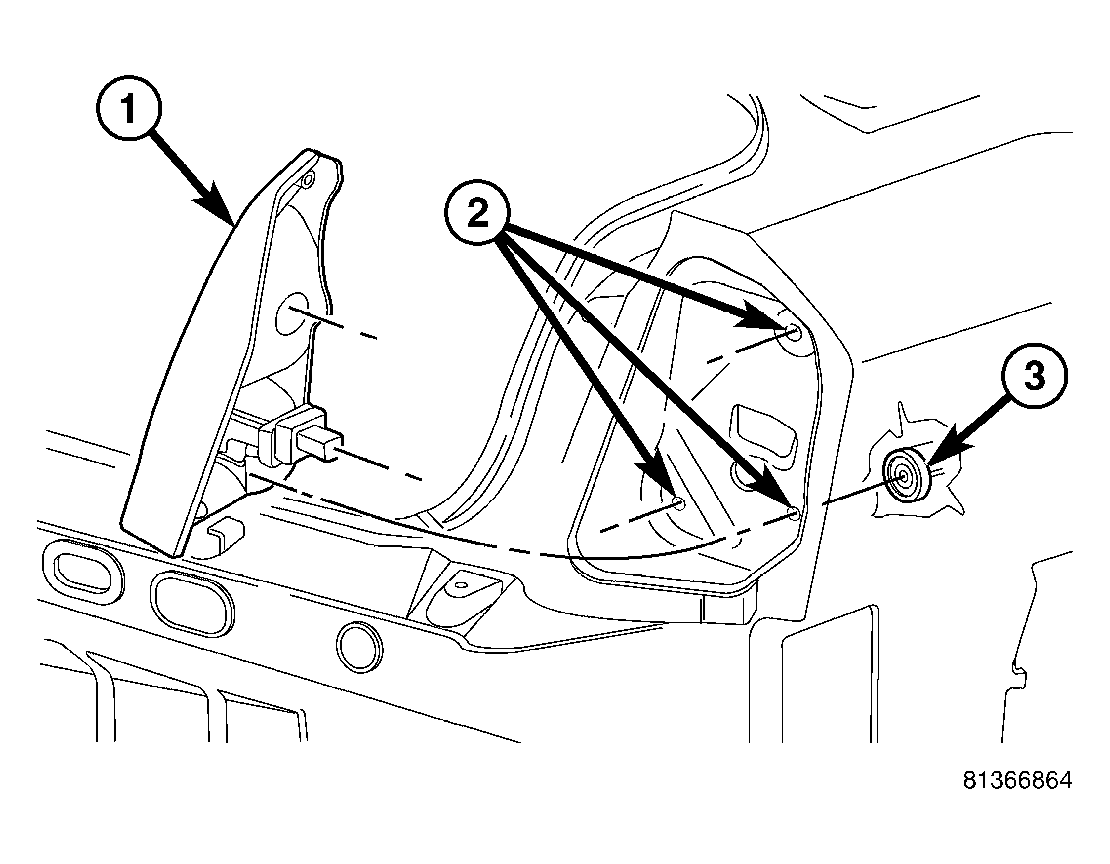

Fig 1: Removing/Installing Tail Lamp Unit

Courtesy of DAIMLERCHRYSLER CORP.

Position the tail lamp unit (1) in the rear quarter panel of vehicle.
Install and tighten the three plastic wing nuts (3).

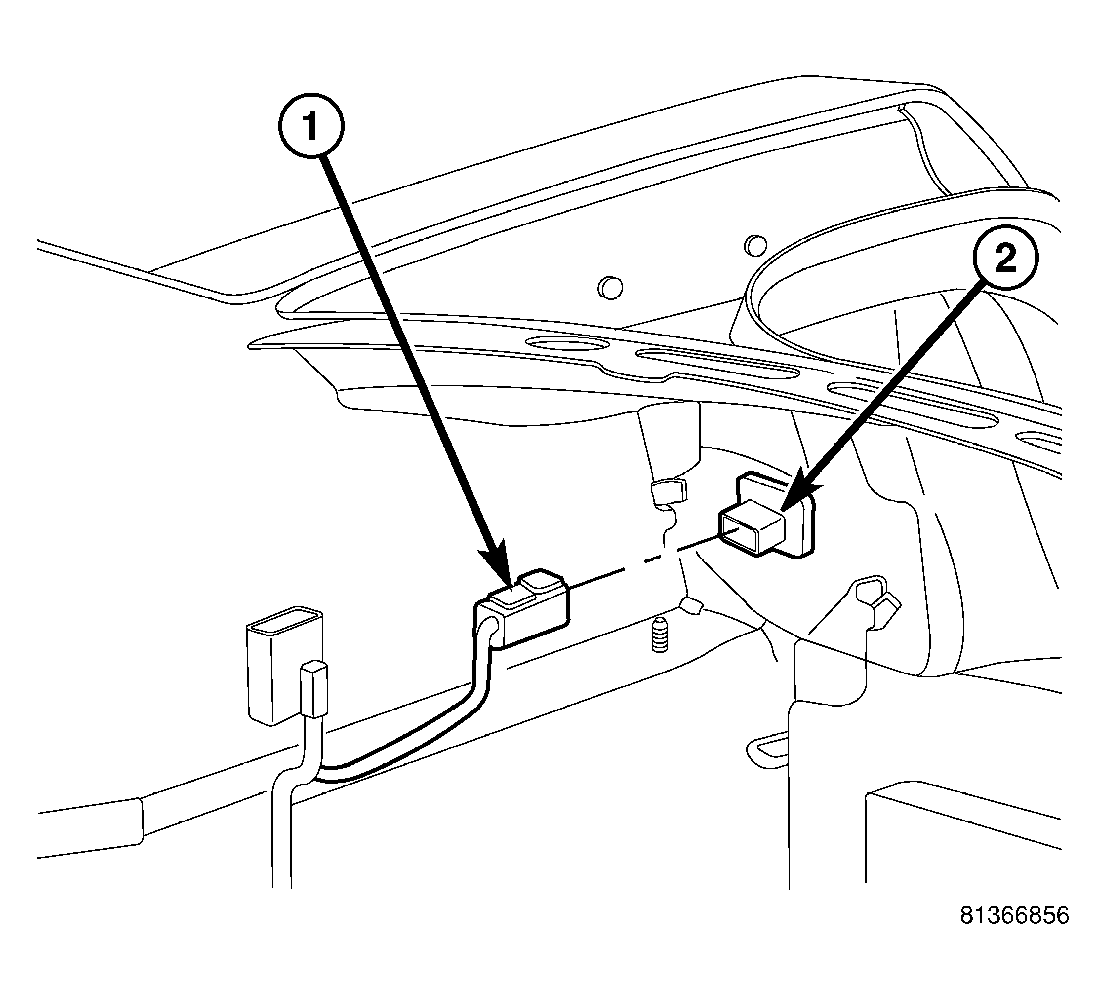

Fig 2: Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
From within the trunk, connect the electrical connector (1) to tail lamp unit (2).
Replace trunk carpeting.
Connect the battery negative cable.
