Removal - Charger

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

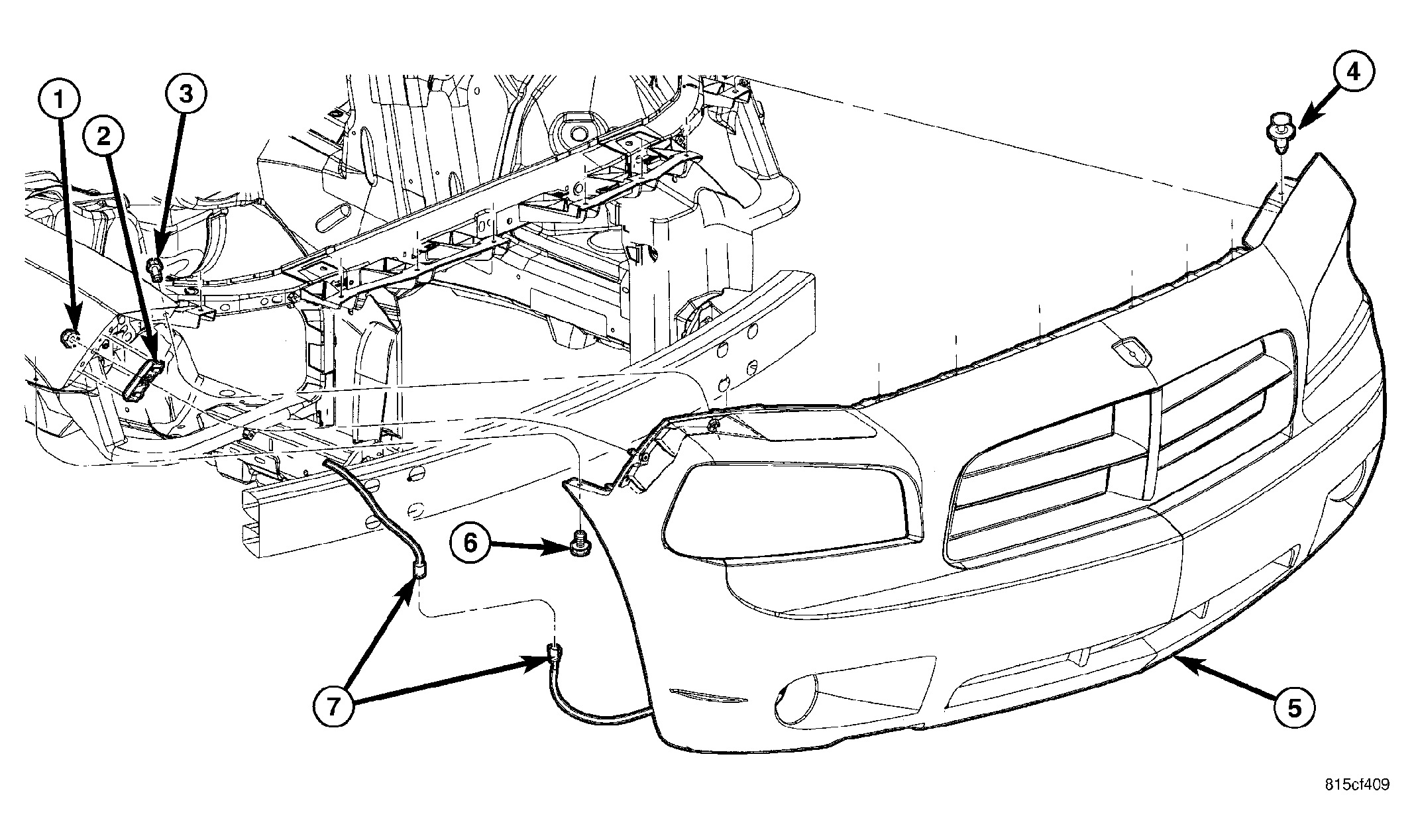

Fig 1: CHARGER FRONT FASCIA

Courtesy of DAIMLERCHRYSLER CORP.

On Charger models, the fascia must first be removed to gain access for the removal of headlamp unit and fasteners (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .

Fig 2: Headlamp Unit
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect and isolate the battery negative cable.
Open hood and remove the two upper headlamp unit mounting screws.

Fig 3: Upper Retaining Screws
Courtesy of DAIMLERCHRYSLER CORP.
The two upper retaining screws (1) are located just in front of the upper radiator cross-member.

Fig 4: Lower Retaining Screw
Courtesy of DAIMLERCHRYSLER CORP.
Remove the one lower headlamp unit retaining screw.

Fig 5: Removing/Installing Headlamp
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connectors.
Separate headlamp unit from vehicle.
