Front Side Marker Lamp Unit - Charger: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

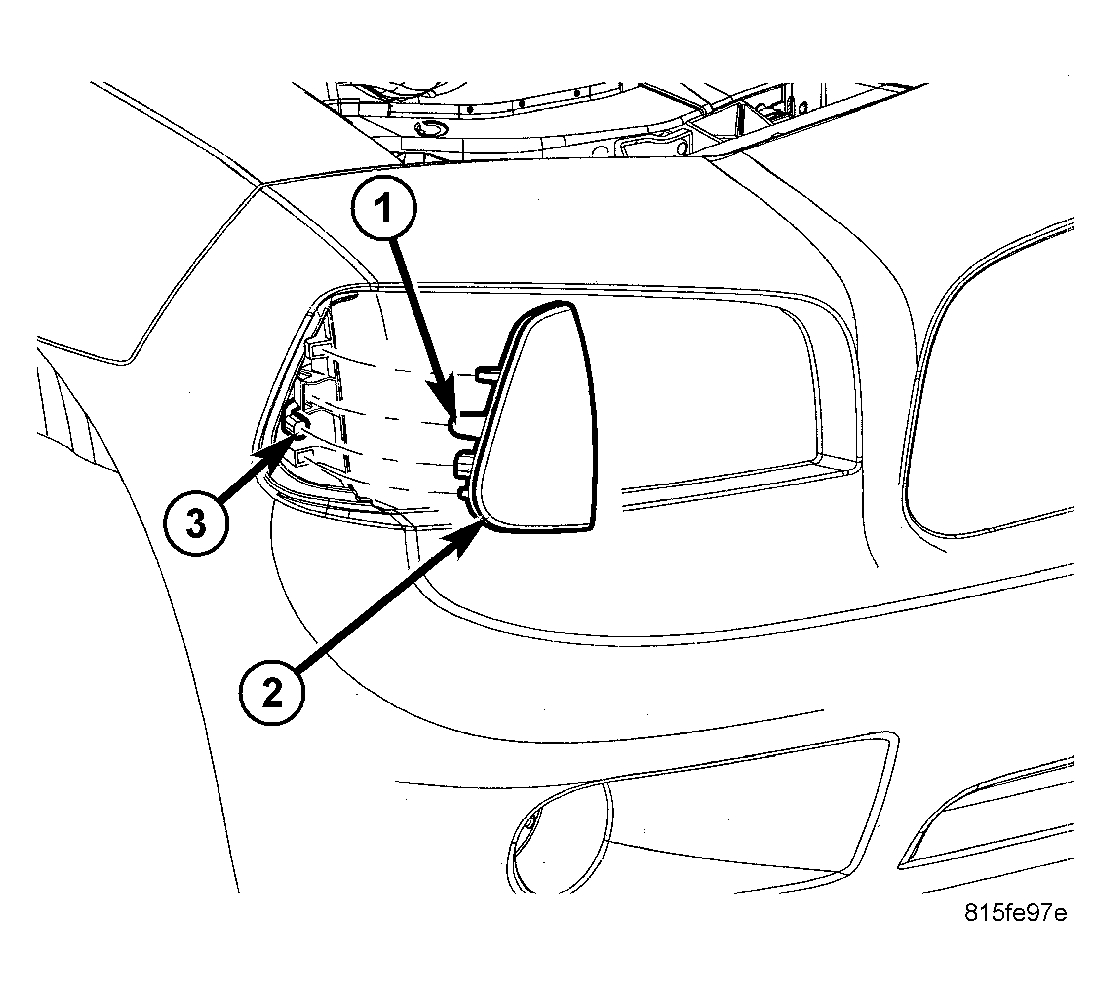

Fig 1: FRONT SIDE MARKER LAMP UNIT R/I
GC0040734Courtesy of DAIMLERCHRYSLER CORP.
  1. Open hood, disconnect and isolate the battery negative cable.
  2. If removing the left front side marker lamp unit, the air cleaner housing (air intake system) must be removed to gain access to the release tabs. Refer to appropriate ENGINE - SERVICE INFORMATION article. The right side is accessible without removing any components.
  3. Reach in behind the headlamp unit and on the outboard side of the unit, find and pinch together the release tabs (1) of the front side marker lamp unit (2).
  4. Push the unit (2) forward and out of the front fascia.
  5. Disconnect the side marker lamp unit connector by releasing the retaining tab and pull it out of the lamp unit.
