Center High Mounted Stop Lamp: Installation: Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

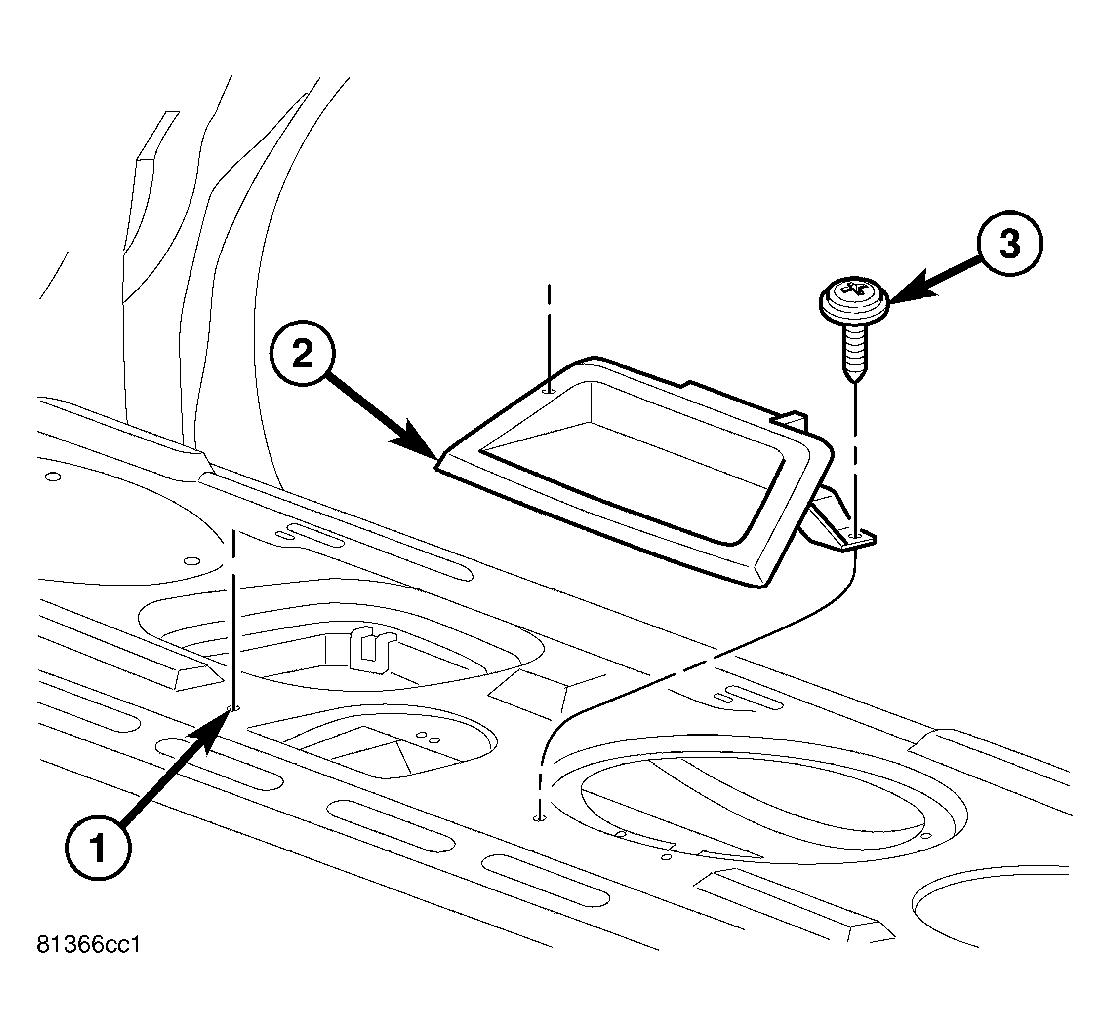

Fig 1: CHMSL Mounting Fasteners
GC0016092Courtesy of DAIMLERCHRYSLER CORP.
  1. Place the center high mounted stop lamp (2) into position at the bottom of the backlite.
  2. Install and tighten the mounting fasteners (3).
    Fig 2: CHMSL Electrical Connector
    GC0016091Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the electrical connector (1).

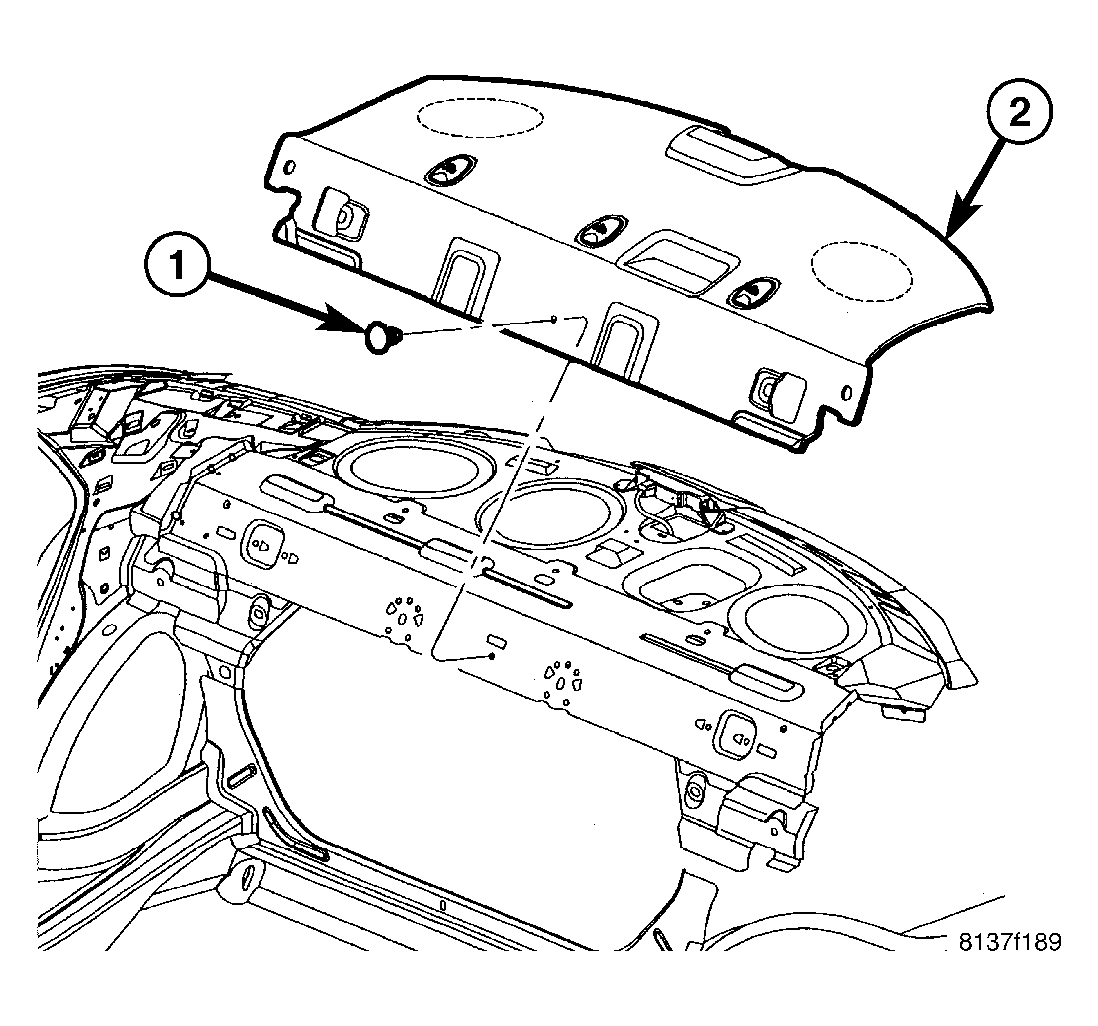

    Fig 3: Rear Shelf Trim Panel
    GC0016093Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the rear shelf trim (Refer to BODY/INTERIOR/REAR SHELF TRIM PANEL - INSTALLATION) .
  5. Connect the battery negative cable.
