Auto Headlamp Sensor: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

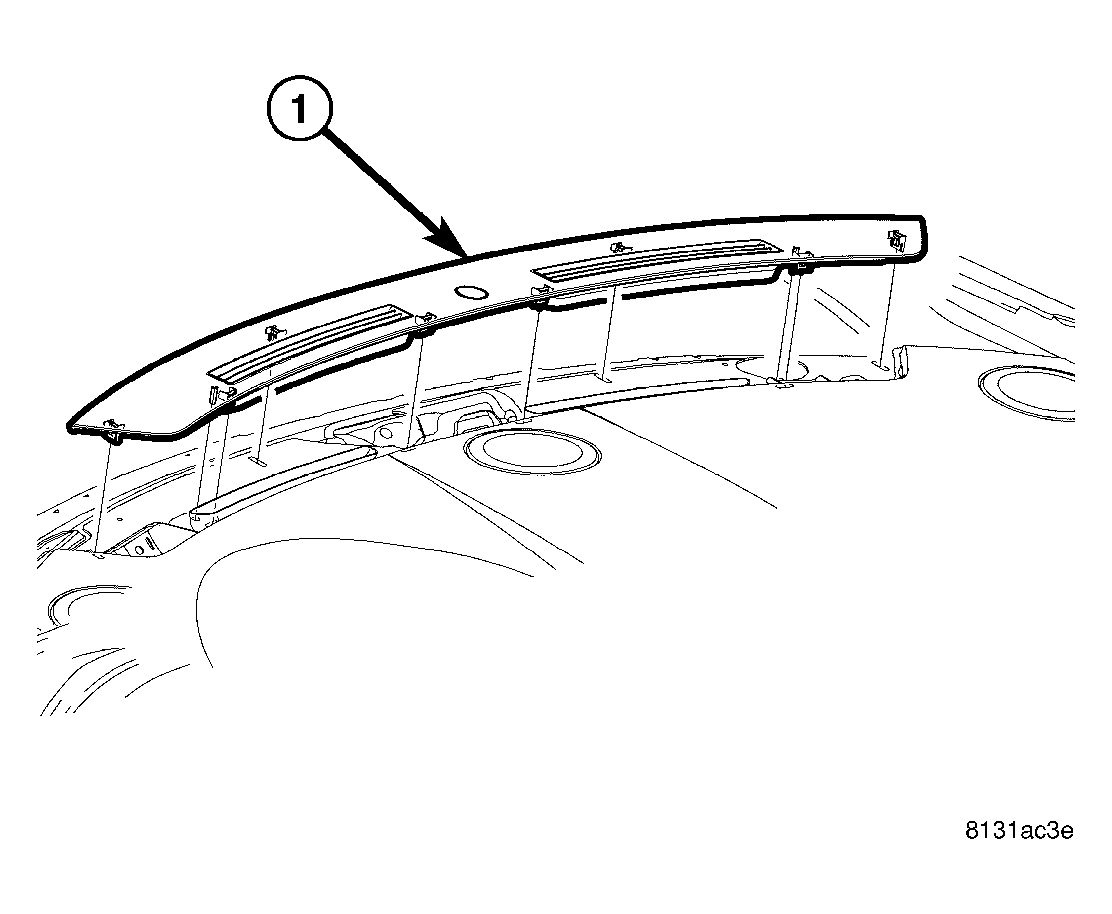

Fig 1: Defroster Grille
GC0013484Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the defroster grille (Refer to BODY/INSTRUMENT PANEL/DEFROSTER GRILLE - REMOVAL) .
    Fig 2: Auto Headlamp Sensor
    GC0016090Courtesy of DAIMLERCHRYSLER CORP.
  3. Using a trim stick (special tool #C-4755) or equivalent, gently pry up on the auto headlamp sensor (1).
  4. Pull the sensor from the top of the instrument panel.
  5. Disconnect the one electrical connector.
