RESONATOR, Exhaust: Removal: 5.7L
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

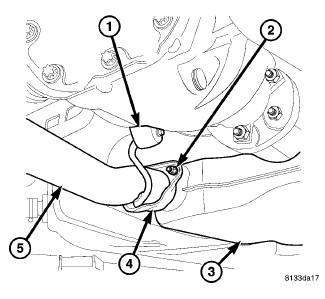

| 1 - ISOLATOR |
| 2 - NUT |
| 3 - MUFFLER AND TAILPIPE ASSEMBLY |
| 4 - BALL FLANGE |
| 5 - LH RESONATOR AND TAILPIPE ASSEMBLY |
- Raise vehicle.
- Remove two nuts (2).
- Remove isolators (1).
- Remove LH resonator and tailpipe assembly (5).
