Right Hand Catalytic Converter

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

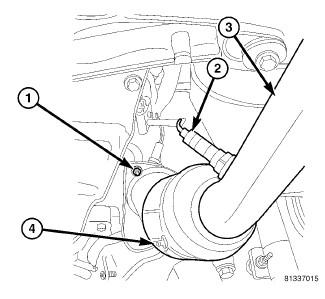

Fig 1: Right Hand Catalytic Converter

Courtesy of CHRYSLER LLC

1 - FLANGE NUTS

2 - DOWNSTREAM OXYGEN SENSOR

3 - FRONT EXHAUST PIPE W/CATALYTIC CONVERTER

4 - CATALYTIC CONVERTER

Disconnect negative battery cable.
Raise vehicle on hoist.
Disconnect downstream oxygen sensor (2) connectors.

Remove muffler and resonator. See Exhaust System/MUFFLER, Exhaust - Removal .

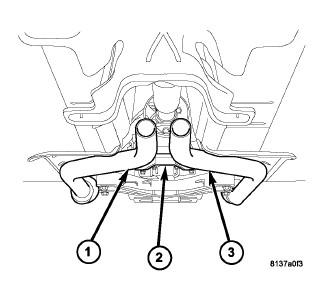

Fig 2: Catalytic Converter Brace

Courtesy of CHRYSLER LLC

1 - LH CATALYTIC CONVERTER

2 - BRACE

3 - RH CATALYTIC CONVERTER

2.7L/3.5L engine only - Remove nuts and cross-brace (2).
Remove catalytic converter to ball flange nuts (1).
Remove catalytic converter (3).
