Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. MECHANICAL CONDITION
    NOTE: Diagnose and repair any Wireless Ignition Node (WIN) DTCs before continuing.
    NOTE: Diagnose and repair any Totally Integrated Power Module (TIPM) DTCs before continuing.
    NOTE: Diagnose and repair any Powertrain Control Module (PCM) and Transmission Control Module (TCM) DTCs before continuing.
    NOTE: Verify the battery is fully charged and capable of passing a load test before continuing.
    WARNING: Make sure the battery is disconnected, then wait two minutes before proceeding. Failure to do so may result in possible serious or fatal injury.
    1. Turn the engine over by hand to make sure the engine is not seized.

      Is the engine able to turn over?

      Yes

      • Go to step  2

      No

      • Repair the mechanical condition preventing the starter motor from cranking.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  2. PARK/NEUTRAL POSITION
    1. Place the transmission in PARK.
    2. With the scan tool, read the Park Neutral Switch Filtered Switch State.
      NOTE: With the transmissions in PARK, the scan tool Park Neutral Switch Filtered Switch State should be On.

      Does the scan tool Park Neutral Switch Filtered Switch State equal the specified value?

      Yes

      • Go to step  3

      No

      • Adjust the shift cable in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  3. EXCESSIVE RESISTANCE IN THE BATTERY CIRCUIT
    1. Turn the ignition off.
    2. Check the Battery Cables for excessive resistance in accordance with the Service Information.

      Did either Battery Cable have a voltage drop greater than 0.2 volt?

      Yes

      • Repair the excessive resistance in the Battery circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  4
  4. TOTALLY INTEGRATED POWER MODULE (TIPM)
    Fig 1: Checking Starter Relay B+ Circuit In TIPM
    GC0137066Courtesy of CHRYSLER LLC
    1. Remove the Starter Relay from the TIPM.
    2. Using a 12-volt test light connected to ground, check the Starter Relay B+ circuit in the TIPM.
      NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connector to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go to step  5

      No

      • Replace the TIPM in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  5. TOTALLY INTEGRATED POWER MODULE (TIPM)
    Fig 2: Checking Starter Coil Driver In TIPM
    GC0137067Courtesy of CHRYSLER LLC
    1. Have an assistant place the ignition in the CRANK position.
    2. Using a 12-volt test light connected to ground, check the Starter Coil Driver in the TIPM with the ignition in the CRANK position.
      NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connector to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go to step  6

      No

      • Replace the TIPM in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  6. (T752) STARTER RELAY CONTROL CIRCUIT CHECK
    Fig 3: Checking Starter Relay Control Circuit
    GC0137068Courtesy of CHRYSLER LLC
    1. Turn the ignition on.
    2. Measure the voltage between the (T752) Starter Relay Control circuit and ground.

      Is the voltage above 1.0 volt?

      Yes

      • Go to step  10

      No

      • Go to step  7
  7. (T752) STARTER RELAY CONTROL CIRCUIT CHECK
    Fig 4: Checking Starter Coil Driver And Starter Relay Control Circuits In TIPM
    GC0137069Courtesy of CHRYSLER LLC
    1. Connect a 12-volt test lamp between the Starter Coil Driver and the (T752) Starter Relay Control circuit in the TIPM.
    2. While observing the 12-volt test light, cycle the ignition from OFF to the CRANK position.
      NOTE: The test lamp should be off with the ignition OFF and illuminate brightly with the ignition in the CRANK position. Compare the brightness to that of a direct connector to the battery.

      Does the test lamp cycle from off to illuminating brightly?

      Yes

      • Go to step  8

      No

      • Go to step  11
  8. (T750) STARTER RELAY OUTPUT CIRCUIT SHORT TO VOLTAGE

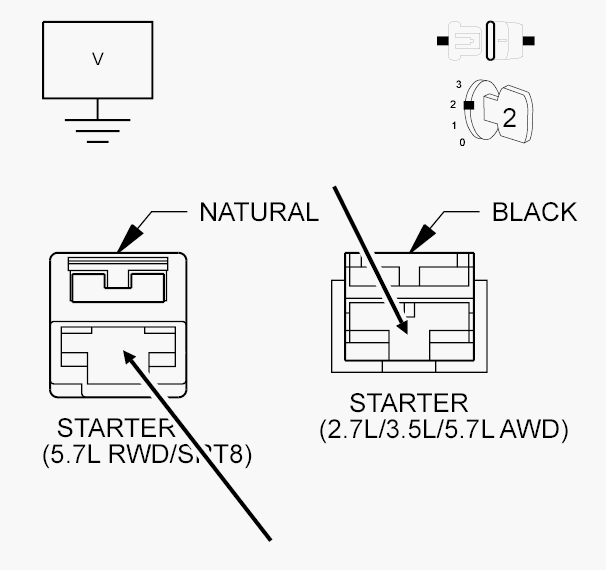

    Fig 5: Checking Starter Relay Output Circuit For Short To Voltage
    GC0137754Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Install the Starter Relay in the TIPM.
    3. Disconnect the Starter Solenoid harness connector.
    4. Turn the ignition on.
    5. Measure the voltage between the (T750) Starter Relay Output circuit and ground.

      Is the voltage above 1.0 volt?

      Yes

      • Repair the short to voltage in the (T750) Starter Relay Output circuit. If the (T750) Starter Relay Output circuit tests normal, replace the Starter Relay in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  9
  9. (T750) STARTER RELAY OUTPUT CIRCUIT CHECK

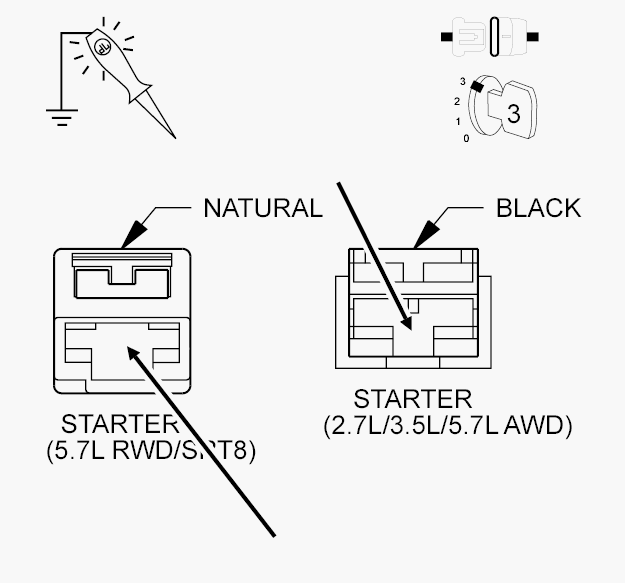

    Fig 6: Checking Starter Relay Output Circuit
    GC0137755Courtesy of CHRYSLER LLC
    1. Connect a 12-volt test lamp between the (T750) Starter Relay Output circuit and ground.
    2. While observing the 12-volt test light, place the ignition in the CRANK position.
      NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connector to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Replace the Starter in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  13
  10. (T752) STARTER RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

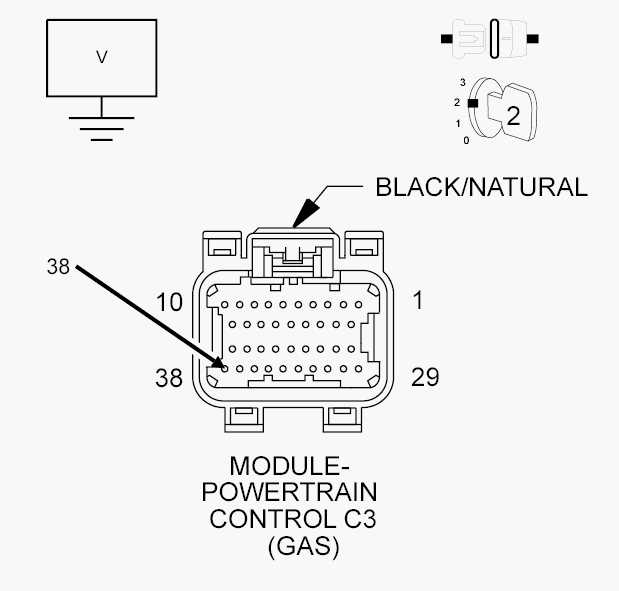

    Fig 7: Checking Starter Relay Control Circuit For Short To Voltage
    GC0137072Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C3 harness connector.
    3. Turn the ignition on.
    4. Measure the voltage between the (T752) Starter Relay Control circuit and ground in the PCM harness connector.

      Is the voltage above 1.0 volt?

      Yes

      • Repair the short to voltage in the (T752) Starter Relay Control circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  15
  11. (T752) STARTER RELAY CONTROL CIRCUIT SHORTED TO GROUND

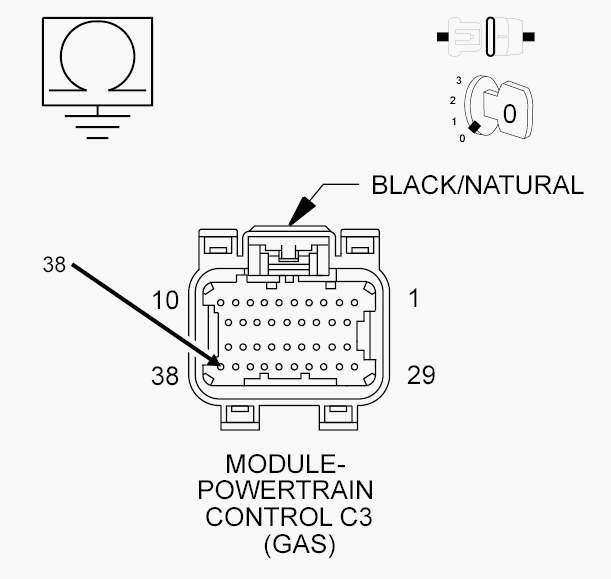

    Fig 8: Checking Starter Relay Control Circuit For Short To Ground
    GC0137073Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C3 harness connector.
    3. Measure the resistance between ground and the (T752) Starter Relay Control circuit in the PCM harness connector.

      Is the resistance below 100 ohms?

      Yes

      • Repair the short to ground in the (T752) Starter Relay Control circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  12

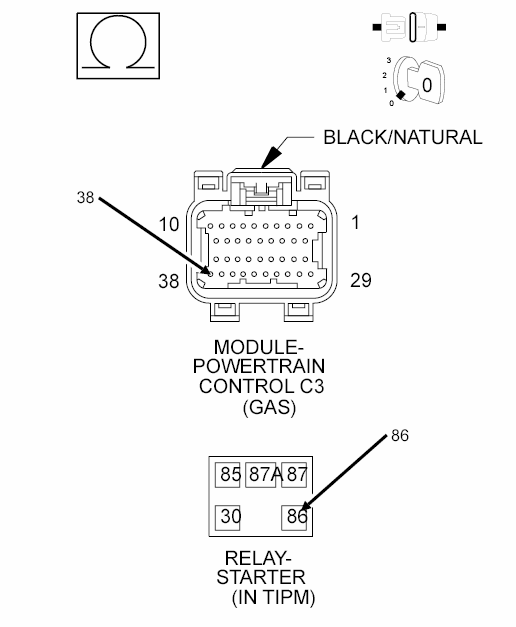

  12. (T752) STARTER RELAY CONTROL CIRCUIT OPEN OR EXCESSIVE RESISTANCE
    Fig 9: Checking Starter Relay Control Circuit For Open Or Excessive Resistance
    GC0137074Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C3 harness connector.
    3. Measure the resistance of the (T752) Starter Relay Control circuit between the TIPM and the PCM harness connector.

      Is the resistance above 5 ohms?

      Yes

      • Repair the open or excessive resistance in the (T752) Starter Relay Control circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  15
  13. (T750) STARTER RELAY OUTPUT CIRCUIT SHORTED TO GROUND

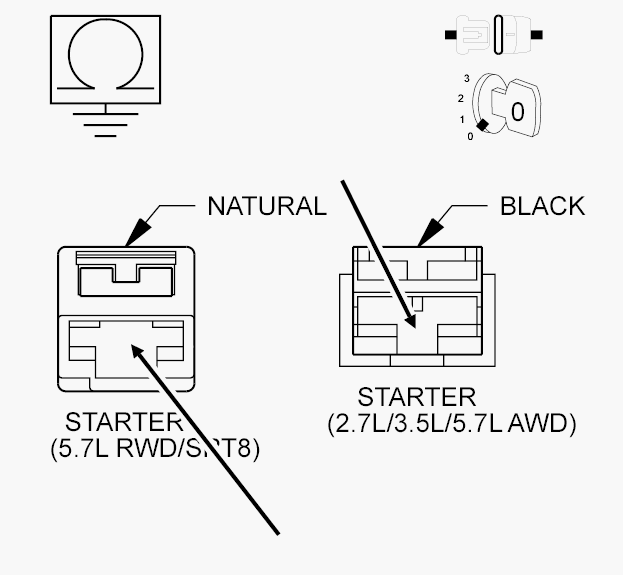

    Fig 10: Checking Starter Relay Output Circuit For Short To Ground
    GC0137756Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Measure the resistance between ground and the (T750) Starter Relay Output circuit.

      Is the resistance below 100 ohms?

      Yes

      • Repair the short to ground in the (T750) Starter Relay Output circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Go to step  14
  14. (T750) STARTER RELAY OUTPUT CIRCUIT OPEN OR EXCESSIVE RESISTANCE

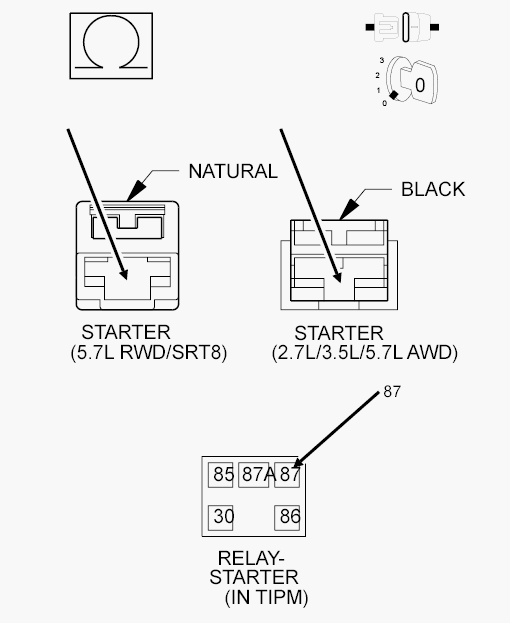

    Fig 11: Checking Starter Relay Output Circuit For Open Or Excessive Resistance
    GC0137757Courtesy of CHRYSLER LLC
    1. Remove the Starter Relay from the TIPM.
    2. Measure the resistance of the (T750) Starter Relay Output circuit between the TIPM and the Starter Solenoid harness connector.

      Is the resistance above 5 ohms?

      Yes

      • Repair the open or excessive resistance in the (T750) Starter Relay Output circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Replace the Starter Relay in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  15. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Starter Relay and PCM.
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals.
    4. Verify that there is good pin to terminal contact in the PCM connectors.
    5. Refer to any Technical Service Bulletins that may apply.

      Were any problems found?

      Yes

      No

      • Replace and program the PCM in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
