Section 305 (Starting System (Service Information)): Starter: Removal: 6.1L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

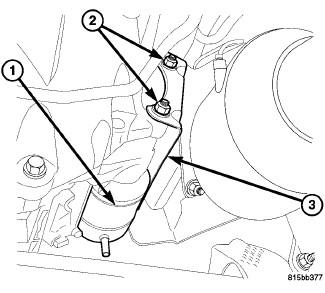

Fig 1: Removing/Installing Heat Shield
GC0080050Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the two heat shield nuts (2) and remove the heat shield (3).

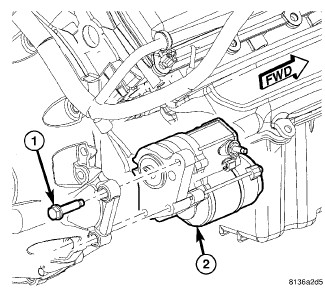

    Fig 2: Starter Mounting Bolt & Starter Motor
    GC0080048Courtesy of CHRYSLER LLC
  4. Remove the three starter mounting bolts (1).
  5. Move the starter motor (2) towards the front of vehicle far enough for the nose of starter to clear. Always support the starter motor (2) during this process. Do not let the starter motor hang from the wire harness.
  6. Remove the battery cable-to-solenoid nut.
  7. Remove the solenoid wire from the solenoid stud.
  8. Remove the starter motor.
