Section 305 (Starting System (Service Information)): Starter: Removal: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

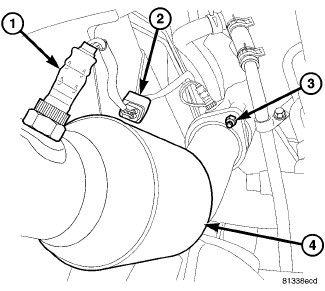

Fig 1: Oxygen Sensor, Oxygen Sensor Connector, Ball Flange Nut & LH Catalytic Converter

Courtesy of CHRYSLER LLC

1 - OXYGEN SENSOR

2 - OXYGEN SENSOR CONNECTOR

3 - BALL FLANGE NUT

4 - LH CATALYTIC CONVERTER

NOTE: All Wheel Drive procedure shown. Rear Wheel Drive Similar.

Disconnect and isolate negative battery cable at battery.
Remove the left side catalytic converter (4). Refer to Exhaust System/CONVERTER, Catalytic - Removal .

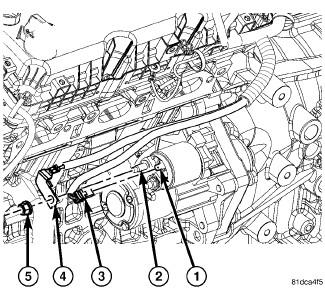

Fig 2: Starter Solenoid Terminal, Solenoid Stud, Electrical Connector, Battery Cable & Battery Cable Nut
Courtesy of CHRYSLER LLC
Remove battery cable nut (5) and battery cable (4) from solenoid stud (2).
Disconnect electrical connector (3) from starter solenoid terminal (1).

Fig 3: Starter Assembly, Starter Motor Dust Shield, Starter Mounting Bolts & Electrical Harness Mounting Bracket
Courtesy of CHRYSLER LLC
Remove starter mounting bolts (3), the electrical harness mounting bracket (4) should remain in position.
Rotate and remove starter assembly (1) from transmission.
Remove starter motor dust shield (2).
