Section 305 (Starting System (Service Information)): Starter: Removal: 2.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

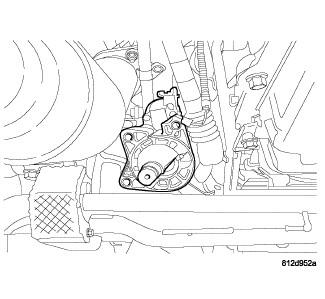

Fig 1: Starter Assembly 2.7

Courtesy of CHRYSLER LLC

Disconnect and isolate negative battery cable at battery.
Install steering wheel holder locking steering wheel in straight-ahead position.
Raise vehicle and support.
Remove the underbody splash shield.
Starter assembly.

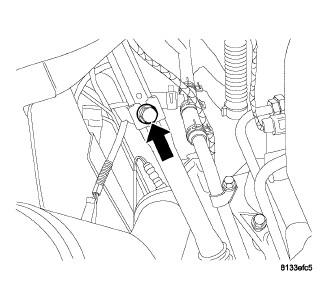

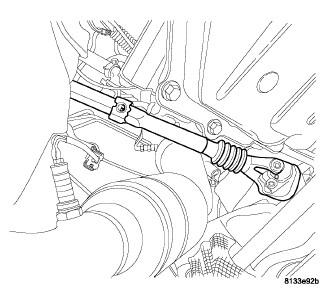

Fig 2: Intermediate Steering Shaft Center Bolt
Courtesy of CHRYSLER LLC
Remove the intermediate steering shaft center bolt.

Fig 3: Steering Shaft Connected
Courtesy of CHRYSLER LLC
Bolt removed.

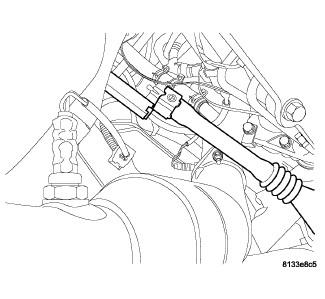

Fig 4: Steering Shaft Removed
Courtesy of CHRYSLER LLC
Separate the intermediate steering shaft upper and lower shaft.

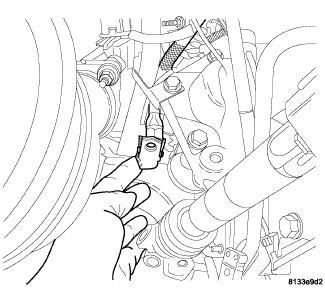

Fig 5: Removing/Installing Starter Cable Electrical Connection
Courtesy of CHRYSLER LLC
Disconnect the electrical connection from the starter.

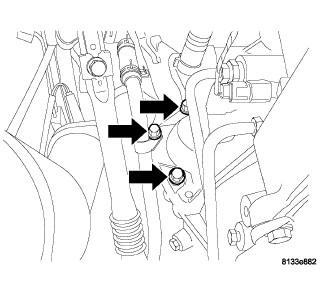

Fig 6: Starter Mounting Bolts
Courtesy of CHRYSLER LLC
Remove the 3 starter mounting bolts and wiring clip.

Fig 7: Starter Removal/Install
Courtesy of CHRYSLER LLC
Pull starter forward and down.

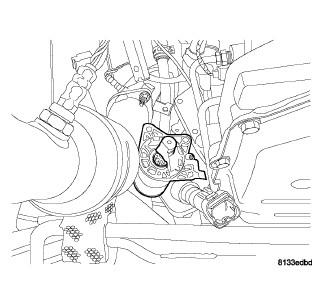

Fig 8: Starter Position Around Exhaust
Courtesy of CHRYSLER LLC
Position the starter up and around exhaust.

Fig 9: Starter Position Past Intermediate Steering Shaft
Courtesy of CHRYSLER LLC
Position the starter past the intermediate steering shaft.

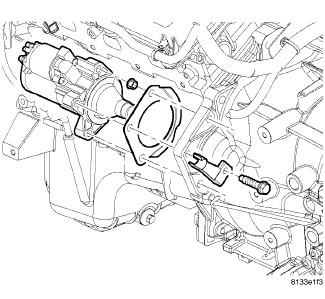

Fig 10: Removing/Installing Starter
Courtesy of CHRYSLER LLC
Remove starter from vehicle.
