All Wheel Drive (AWD)

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

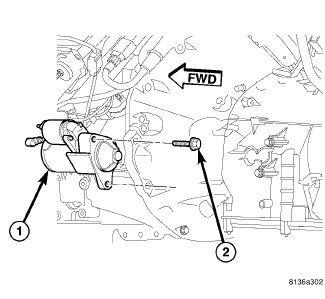

Fig 1: Starter Motor & Starter Mounting Bolts
GC0080049Courtesy of CHRYSLER LLC
  1. Position starter (1) into transmission but do not install bolts.
  2. Connect solenoid wire to starter motor (snaps on).
  3. Position battery cable to solenoid stud. Install and tighten battery cable eyelet nut. Refer to TORQUE  Specifications. Do not allow starter motor to hang from wire harness.
  4. Install and tighten both mounting bolts (2). Refer to TORQUE  Specifications.
  5. Install steering gear assembly and mounting bolts. Install steering column coupling bolt (pinch bolt). Refer to POWER STEERING FASTENER TORQUE for torque specifications.
  6. Install steering gear heat-shield.
  7. Lower vehicle.
  8. Connect negative battery cable.
