3.0L Diesel

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

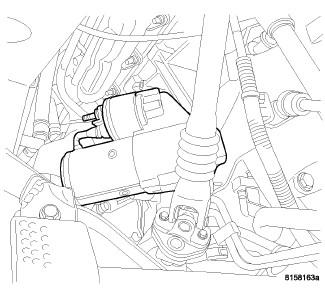

Fig 1: Starter Loose
GC0080045Courtesy of CHRYSLER LLC
  1. Install starter to vehicle.

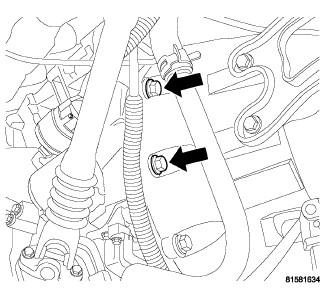

    Fig 2: Mounting Bolts
    GC0080044Courtesy of CHRYSLER LLC
  2. Install the 2 mounting bolts. Torque fasteners to 54.2 N.m (40 ft. lbs.).
    Fig 3: Solenoid Electrical Connections
    GC0080043Courtesy of CHRYSLER LLC
  3. Connect battery connection.
  4. Connect solenoid connection.

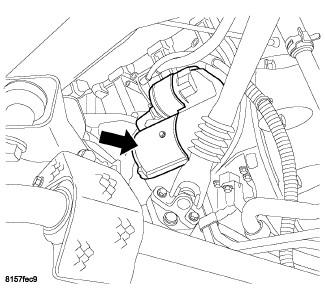

    Fig 4: Starter Installed
    GC0080042Courtesy of CHRYSLER LLC
  5. Starter installed.

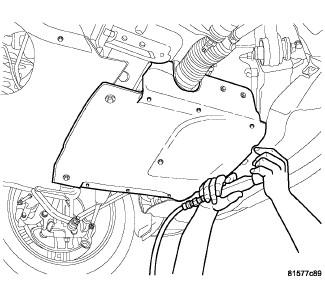

    Fig 5: Removing/Installing Belly Pan
    GC0080041Courtesy of CHRYSLER LLC
  6. Install the rear belly pan.

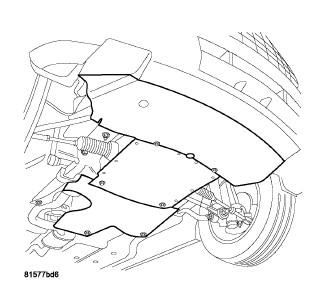

    Fig 6: Belly Pans
    GC0080040Courtesy of CHRYSLER LLC
  7. Install the middle belly pan.
  8. Lower vehicle.
  9. Connect negative battery cable.
