SENSOR, Ambient Temperature: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

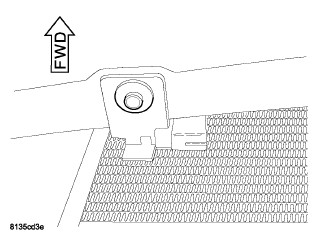

Fig 1: Ambient Temperature Sensor Fastener
GC0080153Courtesy of CHRYSLER LLC
  1. Position the ambient temperature sensor in the vehicle.
  2. Install the fastener that secures the ambient temperature sensor to the front fascia.

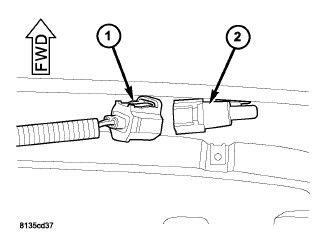

    Fig 2: Ambient Temperature Sensor Connector
    GC0080152Courtesy of CHRYSLER LLC
  3. Connect the wire harness connector (1) to the ambient temperature sensor (2).
  4. Install the belly pan. Refer to Frame and Bumpers/Under Body Protection/BELLY PAN - Installation .
  5. Connect the battery negative cable.
