Rear Speaker - Sedan
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to Electrical/Battery System - Standard Procedure
.

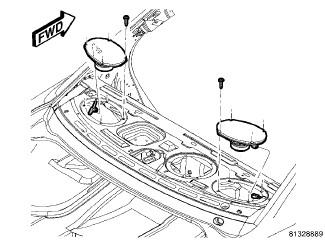

- Connect electrical harness connector and position speaker.
- Install and tighten mounting fasteners.
- Install the rear shelf trim. Refer to Body/Interior/PANEL, Rear Shelf - Installation .
- Install the lower C-pillar trim. Refer to Body/Interior/PANEL, C-Pillar Trim - Installation .
- Install the upper C-pillar trim. Refer to Body/Interior/PANEL, C-Pillar Trim - Installation .
- Connect the battery negative cable.
