Section 302 (Audio System & Video System (Service Information)): Radio: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio Electrical Harness Connectors - Typical

Courtesy of CHRYSLER LLC

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to Electrical/Battery System - Standard Procedure .

Connect the electrical connectors and antenna cables.

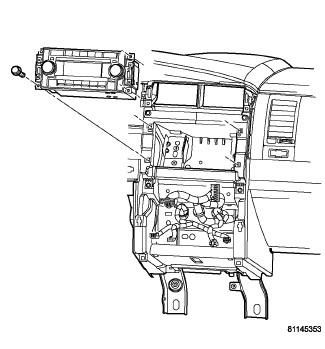

Fig 2: Radio
Courtesy of CHRYSLER LLC
Position the radio and install mounting fasteners.
Install the instrument panel center bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation .
Connect the battery negative cable.
NOTE: REQ RADIO , After installation of the radio, remove the radio from "Transportation Mode" by pulling the IOD fuse or using the scan tool and perform a battery reset.
