3.0L Diesel

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: BATTERY AND CABLES

Courtesy of CHRYSLER LLC

Disconnect and isolate battery negative cable (2) from battery post.
Remove engine cover.
Remove air cleaner housing and inlet tube to throttle body. Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal

Fig 2: SUPPLY HOSE - 3.0L DIESEL
Courtesy of CHRYSLER LLC
Remove turbocharger inlet tube.
Remove intercooler tube resonator.
Remove serpentine drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal
Siphon power steering fluid from pump reservoir. Place something below pump on belly pan to catch any fluid that spills during removal.
Remove hose clamp (2), then supply hose (3) from pump (1).

Fig 3: PRESSURE HOSE AT PUMP - 3.0L DIESEL
Courtesy of CHRYSLER LLC
Unthread tube nut (2), then remove pressure hose from pump (1).

Fig 4: POWER STEERING PUMP - 3.0L DIESEL
Courtesy of CHRYSLER LLC
Loosen, but do not remove, two pump mounting bolts (1) through access holes in pulley.

Fig 5: PUMP MOUNTING BRACKETS - 3.0L DIESEL
Courtesy of CHRYSLER LLC
Loosen, but do not remove, two mounting bolts (4) fastening front pump mounting bracket (1) to engine.

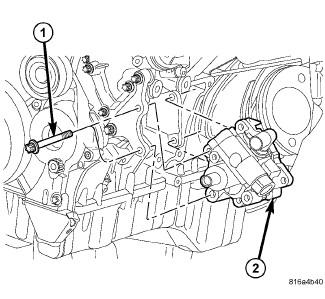

Fig 6: POWER STEERING PUMP - 3.0L DIESEL
Courtesy of CHRYSLER LLC
Remove two previously loosened pump mounting bolts (1) and remove power steering pump (2) from engine.
NOTE: The drive pulley is not serviced separately from the power steering pump.
