HOSE, Power Steering, Supply: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

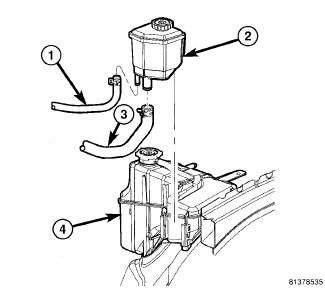

Fig 1: REMOTE RESERVOIR

Courtesy of CHRYSLER LLC

Install reservoir end of supply hose (3) on reservoir hose fitting. Install clamp securing hose in place.

Fig 2: SUPPLY HOSE 3.5L
Courtesy of CHRYSLER LLC
2.7L/3.5L Engines - Install supply hose (3) on pump. Install clamp (2) securing hose in place.

Fig 3: SUPPLY HOSE - 5.7L
Courtesy of CHRYSLER LLC
5.7L/6.1L Engines - Install supply hose (3) on pump (1). Install clamp securing hose in place.

Fig 4: SUPPLY HOSE - 3.0L DIESEL
Courtesy of CHRYSLER LLC
3.0L Diesel Engine - Install supply hose (3) on pump (1). Install clamp (2) securing hose in place.
Install air cleaner housing and inlet tube. Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation

Fig 5: BATTERY AND CABLES
Courtesy of CHRYSLER LLC
Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to Electrical/Battery System - Standard Procedure
Fill and bleed power steering system. See Steering - Standard Procedure
