Steering Systems

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

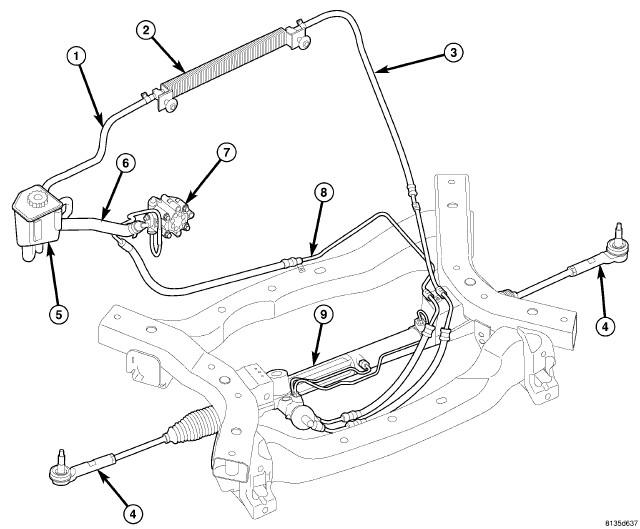

Fig 1: RWD POWER STEERING SYSTEM

Courtesy of CHRYSLER LLC

RWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (9)
Belt driven hydraulic steering pump (7)
Pump pressure (8), return (1 and 3) and supply (6) hoses
Oil Cooler (2)
Remote Reservoir (5)
Inner and Outer tie rod ends (4)

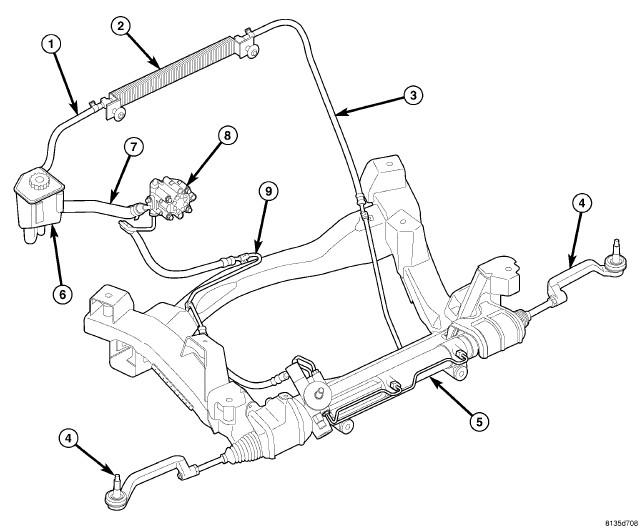

Fig 2: AWD POWER STEERING SYSTEM

Courtesy of CHRYSLER LLC

AWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (5)
Belt driven hydraulic steering pump (8)
Pump pressure (9), return (1 and 3) and supply (7) hoses
Oil Cooler (2)
Remote Reservoir (6)
Inner and Outer tie rod ends (4)
