SLIDER, Steering Column: Installation: Installation
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

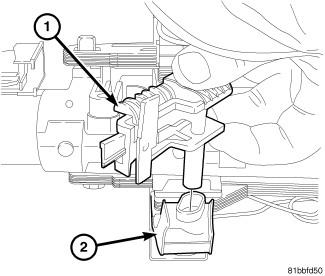

- Position the slider sled (1) as shown in illustration and insert it into the lever arm (2).

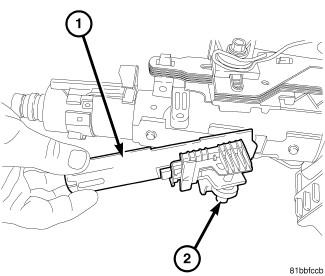

- Insert the slider bar (1) through the slider sled (2) as shown in illustration.

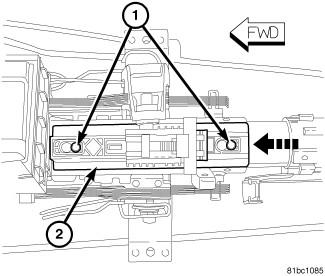

- Place the slider bar onto the column by aligning the large holes in the mounting slots with the casting pins (1) on the column, then slide the slider bar (2) into mounted position.

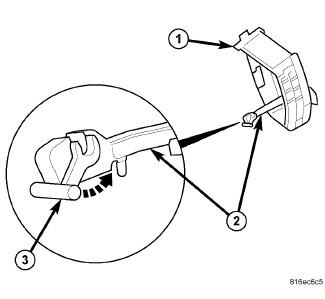

- Position the tilt and telescoping adjustment handle (2) over the column adjustment pin (on slider sled) and rotate the locking tab (3) rearward as shown in illustration latching the handle to the column. Make sure the tab snaps into locked position.
- Install the steering column opening reinforcement (1).
- Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
- Test the steering column tilt and telescoping operation.
