Left side

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

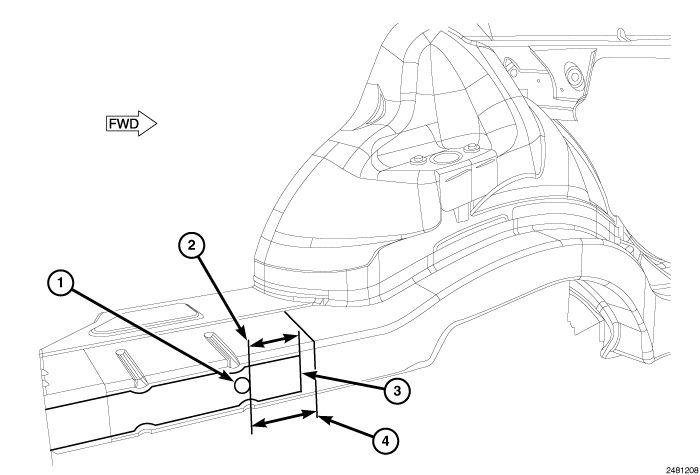

Fig 1: Left Rear Rail Cut Locations

Courtesy of CHRYSLER LLC

1 - HOLE

2 - 100 mm (4 in.)

3 - REINFORCEMENT, REAR RAIL INNER, REAR

4 - CUT LOCATION 125 mm (5 in.)

The "Reinforcement, Rear Rail Inner, Rear" (3) ends 100 mm (4 in.) (2) forward of round hole (1) on inner face of "Rail, Rear Inner" - recommended cut location is 125 mm (5 in.) (4) from forward edge of the hole (1).
