Vol Headlamp Aiming
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

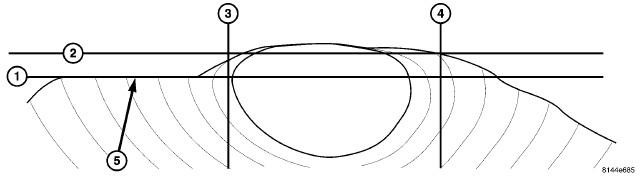

With the horizontal centerline of the headlamp (2) transferred on the wall, measure down 53 mm (2.1 in). This line (1) will be the vertical aiming mark. Using the left side of the headlamp vertical centerline (3), adjust the headlamp unit so the residual light from the headlamp, not the hot spot, is even with the line (1) that was marked previously 53 mm (2.1 in) below the horizontal centerline (2). The ideal alignment should be (5). The right headlamp aiming will be the same, but using the area left of right headlamp vertical centerline (not shown).
- Turn the headlamps On and select the Low beams.
- Rotate the headlamp vertical adjustment screw (and horizontal on export) on each lamp to adjust the beam height as required.
