VOR Headlamp Aiming
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

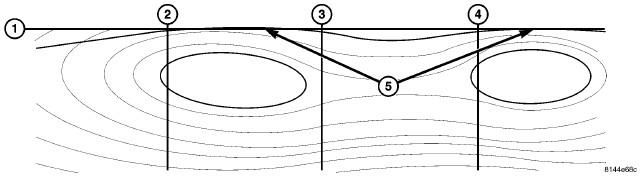

With the horizontal centerline of the headlamp (1) transferred on the wall, this line (1) will be the vertical aiming mark. Using the right side of the headlamp vertical centerline (2 for the left and 4 for the right), adjust the headlamp unit so the residual light from the headlamp is even with the horizontal centerline (1). The ideal alignment should be (5).
- Turn the headlamps On and select the Low beams.
- Rotate the headlamp vertical adjustment screw (and horizontal on export) on each lamp to adjust the beam height as required.
