Export Headlamp Aiming
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

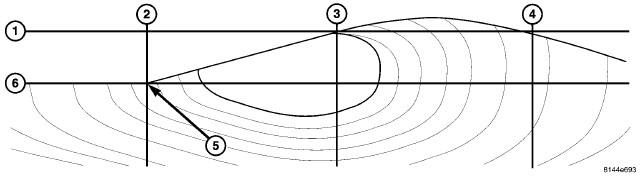

With the horizontal centerline of the headlamp (1) transferred on the wall, measure down 76 mm (3 in). This line (6) will be the vertical aiming mark. Using the intersecting point (5) of the horizontal centerline (6) and the vertical centerline (2) for the left headlamp, adjust the headlamp unit horizontally and vertically so (5) is the intersecting point at lines (6 and 2). For the right headlamp unit, cover up the left headlamp and follow the same procedure but intersecting at (6 and 4).
- Turn the headlamps On and select the Low beams.
- Rotate the headlamp vertical adjustment screw (and horizontal on export) on each lamp to adjust the beam height as required.
