Fog Lamp Alignment

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.

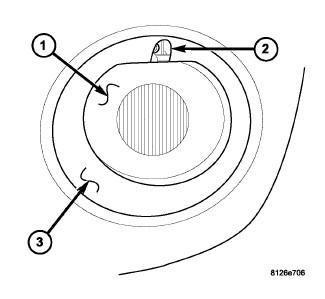

Fig 1: Identifying Fog Lamp Vertical Adjustment Screw
GC0080102Courtesy of CHRYSLER LLC
  1. Turn the fog lamps On.
  2. Rotate the fog lamp vertical adjustment screw (2) on each lamp to adjust the beam height as required.
