LAMP, Tail: Removal: Removal: Sedan

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

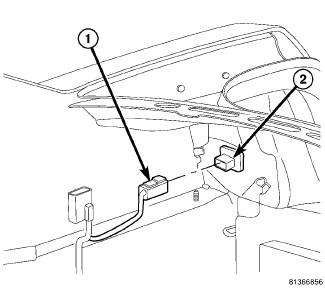

Fig 1: Disconnecting/Connecting Tail Lamp Electrical Connector
GC0095280Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. From inside the trunk, peel back the trunk trim and disconnect the electrical connector.

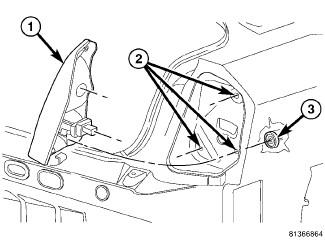

    Fig 2: Tail Lamp Unit And Wing Nuts
    GC0095281Courtesy of CHRYSLER LLC
  3. Remove the three plastic wing nuts (3).
  4. Pull the tail lamp unit (1) straight out of the rear of the quarter trim panel.
