LAMP, Spot: Installation: Bulb
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Position bulb into spot lamp assembly.
- Install the hold downs.
- Connect the electrical connector to the spot lamp head assembly.

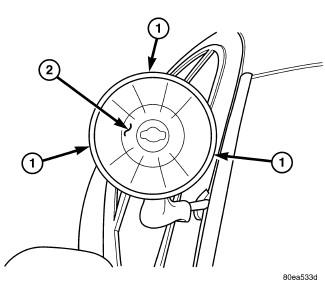

- Tilt the sealed beam (2) toward the spot lamp head assembly.
- Install the bezel to the spot lamp head assembly.
- Install the screws (1) retaining the bezel to the spot lamp head assembly.
- Lower the spot lamp from the operating to stowed position.
- Install the fuse and PDC cover.
