LAMP, Fog: Installation: Bulb
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

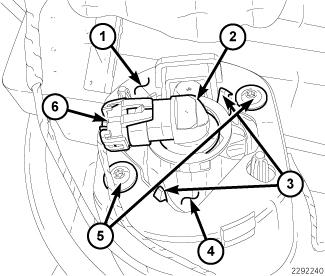

- Align the front fog lamp bulb (2) with the keyed opening on the back of the front fog lamp housing (4).
- Insert the bulb into the housing until it is firmly seated.
- Rotate the bulb clockwise about 30 degrees to lock it into place. The bulb connector receptacle should be pointed outboard and horizontal in orientation.
- Reconnect the headlamp and dash wire harness connector (6) to the front fog lamp bulb connector receptacle.
- Reinstall the front belly pan to the underbody. Refer to Frame and Bumpers/Under Body Protection/BELLY PAN - Installation .
- Lower the vehicle.
- Reconnect the battery negative cable.
