Halogen Headlamp
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC
NOTE:
If replacing the left low or high beam headlamp, the air box has to be removed first
- Disconnect and isolate the battery negative cable.
- Disconnect the lamp electrical connector.

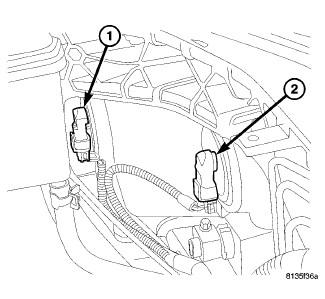

- Twist lamp (1 and 2) out of headlamp housing.
