SENSOR, Wheel Speed, Front: Installation: All-Wheel-Drive

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

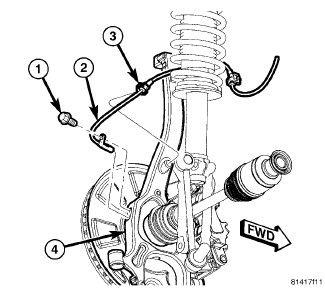

Fig 1: WHEEL SPEED SENSOR AT FRONT KNUCKLE - AWD

Courtesy of CHRYSLER LLC

Install wheel speed sensor (2) head into knuckle (4) and install mounting screw (1). Tighten screw to 11 N.m (97 in. lbs.).
Attach wheel speed sensor cable and routing clip (3) to knuckle (4).

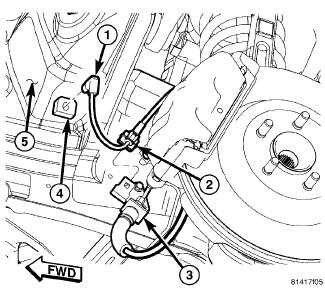

Fig 2: WHEEL SPEED SENSOR AT BODY - AWD
Courtesy of CHRYSLER LLC
Attach sensor cable routing clip (2) to brake hose bracket (3).
Connect sensor connector (1) to body wiring harness connector (4). When installing connector, make sure retaining clip on body connector is properly in place and sensor connect cannot be pulled out.
Lower vehicle.
Perform Verification Test and clear any faults. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
