VALVE, Exhaust Gas Recirculation (EGR): Installation: 5.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

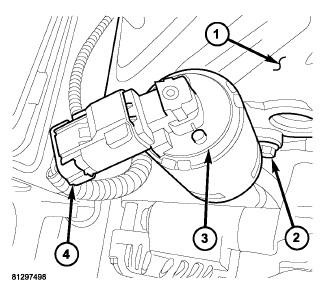

Fig 1: Cylinder Head, Mounting Bolts & Valve Assembly

Courtesy of CHRYSLER LLC

Position a new metal gasket between cylinder head (1) and valve assembly (3).
Install two mounting bolts (2) and tighten. Refer to Torque Specifications.

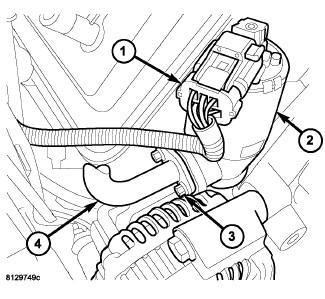

Fig 2: Electrical Connector, EGR Solenoid, Bolts & EGR Tube
Courtesy of CHRYSLER LLC
Clean EGR tube where it joins EGR valve.
Position new gasket between EGR tube flange and EGR valve assembly.
Install two bolts (3) connecting EGR tube (4) to valve assembly (2). Tighten bolts. Refer to TORQUE Specifications.
Connect electrical connector (1) to EGR solenoid (2).
Connect negative battery cable.
Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
