3.0L Diesel
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

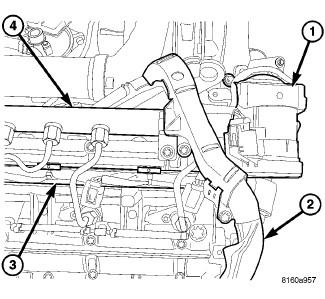

| 1 - EXHAUST GAS RECIRCULATION (EGR) VALVE |
| 2 - MAIN ENGINE WIRING HARNESS |
| 3 - FUEL INJECTOR WIRING HARNESS |
| 4 - LEFT FUEL RAIL |
- Disconnect the negative battery cable.
- Remove engine cover. Refer to Engine - Removal .
- Disconnect the EGR valve wiring harness connector.
- Remove EGR valve retaining bolts and valve, discard the gasket.
