VALVE, Positive Crankcase Ventilation (PCV): Installation: 5.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: PCV Valve, O-Rings & Tabs

Courtesy of CHRYSLER LLC

Clean out intake manifold opening.
Check condition of two O-rings (2) on PCV valve (1).
Apply engine oil to two O-rings.

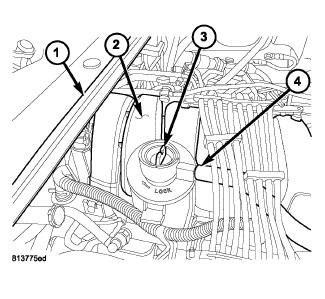

Fig 2: PCV Valve Mounted Into Top/Right Side Of Intake Manifold
Courtesy of CHRYSLER LLC
Place PCV valve (3) into intake manifold and rotate 90 degrees clockwise for installation.
