VALVE, Positive Crankcase Ventilation (PCV): Installation: 2.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

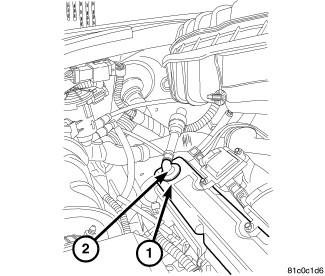

Fig 1: Cylinder Cover & PCV Valve

Courtesy of CHRYSLER LLC

Install Positive Crankcase Ventilation (PCV) valve (2) to cylinder cover (1).
Install the intake manifold. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .

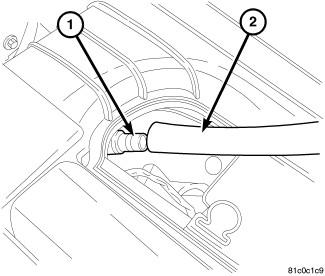

Fig 2: PCV Hose & Valve
Courtesy of CHRYSLER LLC
Install the PCV hose (2) to PCV valve (1).

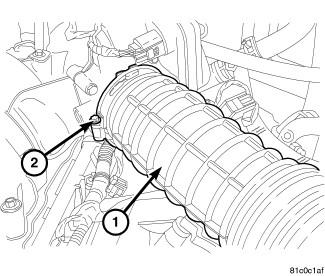

Fig 3: Air Inlet Tube & Hose Clamp
Courtesy of CHRYSLER LLC
Install the Exhaust Gas Recirculation (EGR) Valve tube. See Emissions Control/Exhaust Gas Recirculation/TUBE, Exhaust Gas Recirculation (EGR) - Installation .
Install the air inlet hose (1) to throttle body. Tighten Clamp (2).
