International Control And Display Symbols
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Chrysler LLC uses international symbols to identify various systems on the vehicle.
The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle.

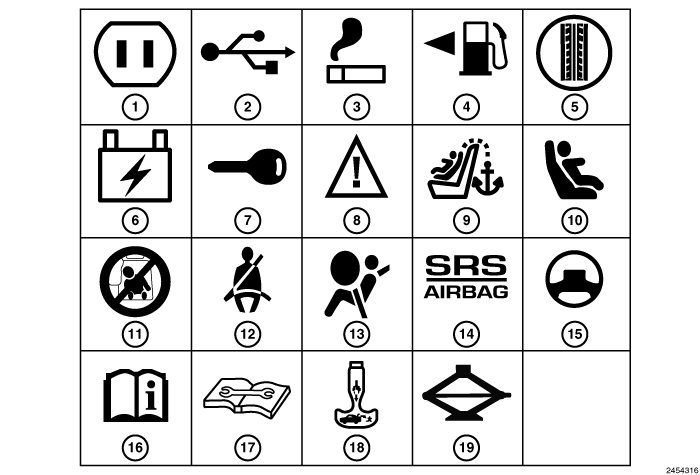

INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | 115-Volt Power Inverter | 11 | Side Airbag |
| 2 | USB Connector | 12 | Seat Belt |
| 3 | Lighter | 13 | Airbag |
| 4 | Fuel Fill Side | 14 | Supplemental Restraint System |
| 5 | Spare Tire Winch | 15 | Power Steering Fluid |
| 6 | Fuse | 16 | See Owner's Manual |
| 7 | Key Activate (Power Outlet) | 17 | See Appropriate Service Information Section |
| 8 | Warning | 18 | Emergency Release Handle |
| 9 | Child Seat Tether Anchor | 19 | Jack/Jack Tools Location |
| 10 | Lower Anchors and Tether for Children (latch) | - | - |

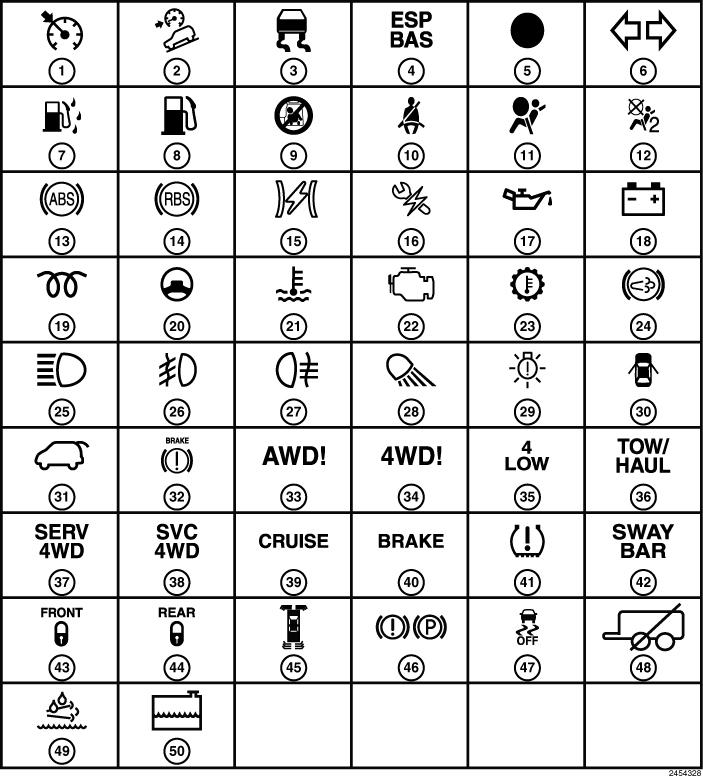

INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | Electronic Speed Control | 26 | Front Fog Light |
| 2 | Hill Descent Control | 27 | Rear Fog Light |
| 3 | Traction Control | 28 | Cargo Lamp |
| 4 | Electronic Stability Program/Brake System Assist System | 29 | Exterior Bulb Failure |
| 5 | Security Indicator | 30 | Door Ajar |
| 6 | Turn Signals | 31 | Liftgate Open |
| 7 | Water In Fuel | 32 | Brake System Warning Parking Brake |
| 8 | Low Fuel | 33 | All Wheel Drive |
| 9 | Side Airbag | 34 | Four Wheel Drive |
| 10 | Seat Belt Reminder | 35 | Four Wheel Drive Low |
| 11 | Airbag Warning Light | 36 | Tow/Haul |
| 12 | Passenger Airbag Off | 37 | Service Four Wheel Drive |
| 13 | Failure Of Anti-Lock Braking System | 38 | Service Four Wheel Drive |
| 14 | HEV Brake Regenerative Light | 39 | Cruise Indicator |
| 15 | Electronic Throttle Control | 40 | Brake System Warning Parking Brake |
| 16 | HEV Service Light | 41 | Tire Pressure Monitor |
| 17 | Engine Oil | 42 | Sway Bar Disconnect Indicator |
| 18 | Battery Charging | 43 | Front Axle Lock |
| 19 | Glow Plug/Intake Air Heated | 44 | Rear Axle Lock |
| 20 | Power Steering Fluid | 45 | Park Assist Indicator |
| 21 | Engine Coolant Temperature | 46 | Park Brake Indicator |
| 22 | Malfunction Indicator Light | 47 | Electronic Stability Control/Traction Control Off |
| 23 | Transmission Oil Temperature Light | 48 | Trailer Brake System Off |
| 24 | Diesel Exhaust Brake | 49 | - |
| 25 | High Beam | 50 | - |

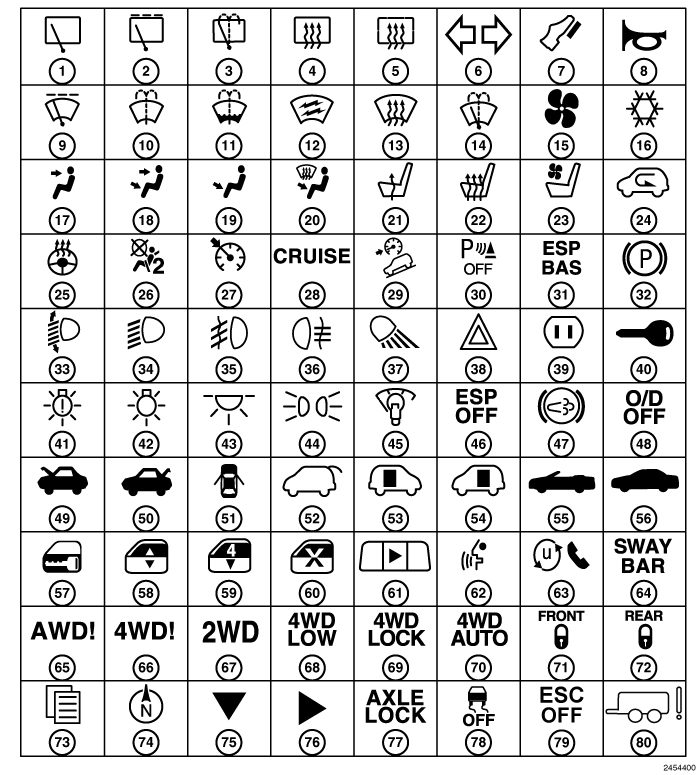

INTERNATIONAL CONTROL SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|---|---|
| 1 | Rear Window Wiper | 26 | Passenger Air Bag Off | 51 | Door Ajar |
| 2 | Rear Window Intermittent Wiper | 27 | Electronic Speed Control | 52 | Liftgate Release |
| 3 | Rear Window Washer | 28 | Cruise Indicator | 53 | Sliding Door |
| 4 | Rear Window Defrost | 29 | Hill Descent Control | 54 | Sliding Door |
| 5 | Heated Mirror | 30 | Park Assist Off | 55 | Convertible Top Down |
| 6 | Turn Signals | 31 | Electronic Stability Program/Brake System Assist System | 56 | Convertible Top Up |
| 7 | Adjustable Pedals | 32 | Park Brake Release | 57 | Door Lock |
| 8 | Horn | 33 | Adjustable Headlights | 58 | Window Lift |
| 9 | Windshield Wiper Intermittent | 34 | Low Beam | 59 | Convertible 4 Window Down |
| 10 | Windshield Washer | 35 | Front Fog Light | 60 | Window Lock |
| 11 | Windshield Washer Fluid Level | 36 | Rear Fog Light | 61 | Power Rear Window |
| 12 | Windshield Electrically Heated | 37 | Cargo Lamp | 62 | Voice Recognition Button |
| 13 | Windshield Defrost | 38 | Hazard Lights | 63 | Uconnect™ Button |
| 14 | Windshield Wiper And Washer | 39 | 115-Volt Power Inverter | 64 | SwayBar Disconnect |
| 15 | Ventilating Fan | 40 | Key Activate (Power Outlet) | 65 | All Wheel Drive |
| 16 | Air Conditioning | 41 | Exterior Bulb Failure | 66 | Four Wheel Drive |
| 17 | Upper Air Outlet | 42 | Master Lighting Switch | 67 | Two Wheel Drive |
| 18 | Upper And Lower Air Outlet | 43 | Dome Light | 68 | Four Wheel Drive Low |
| 19 | Lower Air Outlet | 44 | Park Lights | 69 | Four Wheel Drive Lock |
| 20 | Defrost And Lower Air Outlet | 45 | Instrument Panel Illumination | 70 | Four Wheel Drive Auto |
| 21 | Heated Seat Low | 46 | Electronic Stability Program Off | 71 | Front Axle Lock |
| 22 | Heated Seat High | 47 | Diesel Exhaust Brake | 72 | Rear Axle Lock |
| 23 | Ventilated Seat | 48 | Overdrive Off | 73 | EVIC Menu |
| 24 | Recirculation | 49 | Hood Release | 74 | Navigation Button |
| 25 | Heated Steering Wheel | 50 | Trunk/Deck Release | 75 | Step |
| 76 | Reset | 77 | Axle Lock Button | 78 | Traction Control Off |
| 79 | Electronic Stability Control Off | 80 | Trailer Brakes | - | - |
