RESERVOIR, Windshield Washer: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

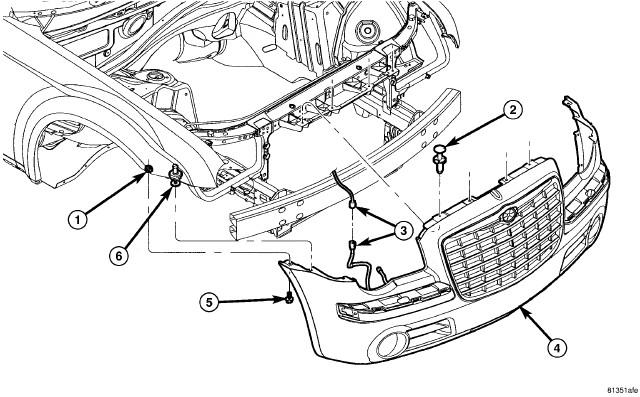

Fig 1: Removing/Installing Fascia

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
Remove the front fascia (4). Refer to Frame and Bumpers/Bumpers/FASCIA, Front - Removal .

Fig 2: Washer Pump Motor
Courtesy of CHRYSLER LLC
Disconnect electrical harness connectors (1 and 3) from reservoir.
Disconnect hose from reservoir (2) and drain fluid into container.

Fig 3: Identifying Rear Mounting Fastener
Courtesy of CHRYSLER LLC
Remove the rear mounting fastener (2).

Fig 4: Removing/Installing Washer Reservoir
Courtesy of CHRYSLER LLC
Remove the remaining fasteners (1).

Fig 5: Washer Fluid Reservoir
Courtesy of CHRYSLER LLC
Remove the reservoir (4) from the vehicle.
