PUMP, Windshield Washer: Removal: Removal
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Drain washer fluid from the reservoir and into a suitable clean container. This can be done by disconnecting the windshield washer hose from the front (outboard) washer pump and allowing the washer fluid to drain into a container through a temporary jumper hose connected to the front washer pump.

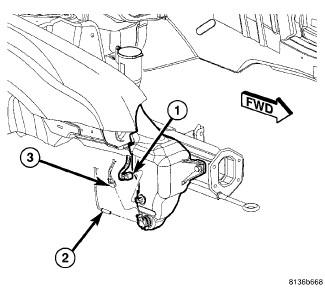

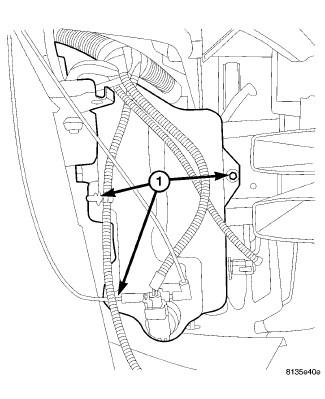

- Remove the washer reservoir. See Electrical/Wipers/Washers/RESERVOIR, Windshield Washer - Removal .
- Remove the washer pump motor by pulling out of reservoir. Inspect the grommet and if installing a new motor, always use a new grommet.
