MOTOR, Wiper, Front: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

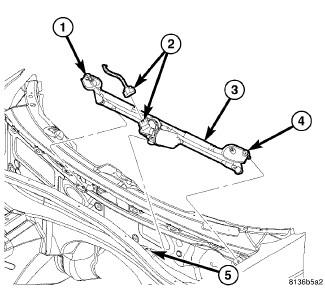

Fig 1: Removing/Installing Wiper Module
GC0080265Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the front wiper module (3). See Electrical/Wipers/Washers/LINKAGE, Wiper Arm - Removal .
    NOTE: When removing the motor from the linkage assembly, do not remove the bellcrank nut. A timing issue will arise with the cam in the motor and a new motor will be needed. The wiper motor will be shipped from Mopar® with the bellcrank already installed.
  3. With the front wiper module on bench or in vise, remove the linkage using a screwdriver, flat bar or equivalent to pry the linkage off the bellcrank.
  4. Remove the two motor mounting bolts (1).
    NOTE: When separating the motor from the linkage, there are two pocket nuts that may fall out. Take care to keep these and reinstall them during installation.
  5. Separate the wiper motor from the wiper module/linkage.
