Rear Door

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

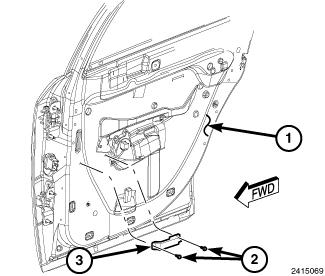

Fig 1: View of Rear Door, Screws And Antenna Connector Receptacle
GC0137521Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the inside of the rear door (1). Refer to Body/Doors - Rear/PANEL, Rear Door Trim - Removal .
  3. Disconnect the door wire harness connector from the antenna (3) connector receptacle.
  4. Remove the two screws (2) that secure the antenna to the inside of the rear door.
  5. Remove the antenna from the rear door.
