ANTENNA, Passive Entry: Installation: Trunk

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

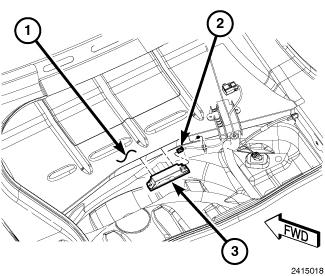

Fig 1: Identifying Trunk, Body Wire Harness Connector, Antenna And Receiver Unit
GC0137522Courtesy of CHRYSLER LLC
  1. Position the antenna and receiver (3) into the trunk as a unit.
  2. Align the clip on the underside of the antenna receiver with the flange where the trunk floor (1) meets the forward edge of the spare tire well.
  3. Push the antenna and receiver unit forward until the clip is fully seated on the flange.
  4. Reconnect the body wire harness connector (2) to the antenna connector receptacle.
  5. Reinstall the spare tire cover and trunk carpet over the trunk floor and the spare tire well. Refer to Body/Interior/CARPET - Installation .
  6. Reconnect the battery negative cable.
