SENSOR, Park Assist: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

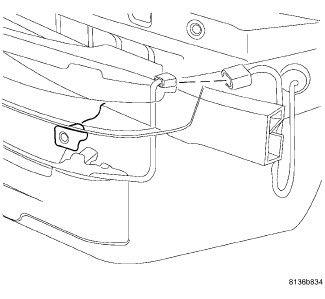

Fig 1: Removing/Installing Park Assist Sensor
GC0079957Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove rear fascia. Refer to Frame and Bumpers/Bumpers/FASCIA, Rear - Removal .
  3. Unsnap Park Assist Sensor from the retaining housing and remove from fascia.
