MODULE, Park Assist: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

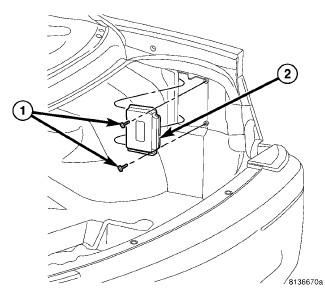

Fig 1: Removing/Installing Park Assist Module
GC0079951Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Peel back the right inner trunk carpet to expose the Park Assist Module (2).
  3. Remove the two attaching screws (1) and separate the module (2) from the vehicle.
    Fig 2: Removing/Installing Park Assist Module
    GC0079952Courtesy of CHRYSLER LLC
  4. On the wagon, the module will be behind the right side D-pillar trim and is attached the same as the sedan.
    Fig 3: Removing/Installing Park Assist Module
    GC0079953Courtesy of CHRYSLER LLC
  5. Disconnect the Park Assist Module (2) electrical connector (1).
